Timken G1014KLLB
Fafnir® Eccentric Locking Collar Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Series
Industrial
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Relubricatable
O.D. Type
Spherical OD
Sub Series
G1…KLLB
Seal Type
Labyrinth Seal

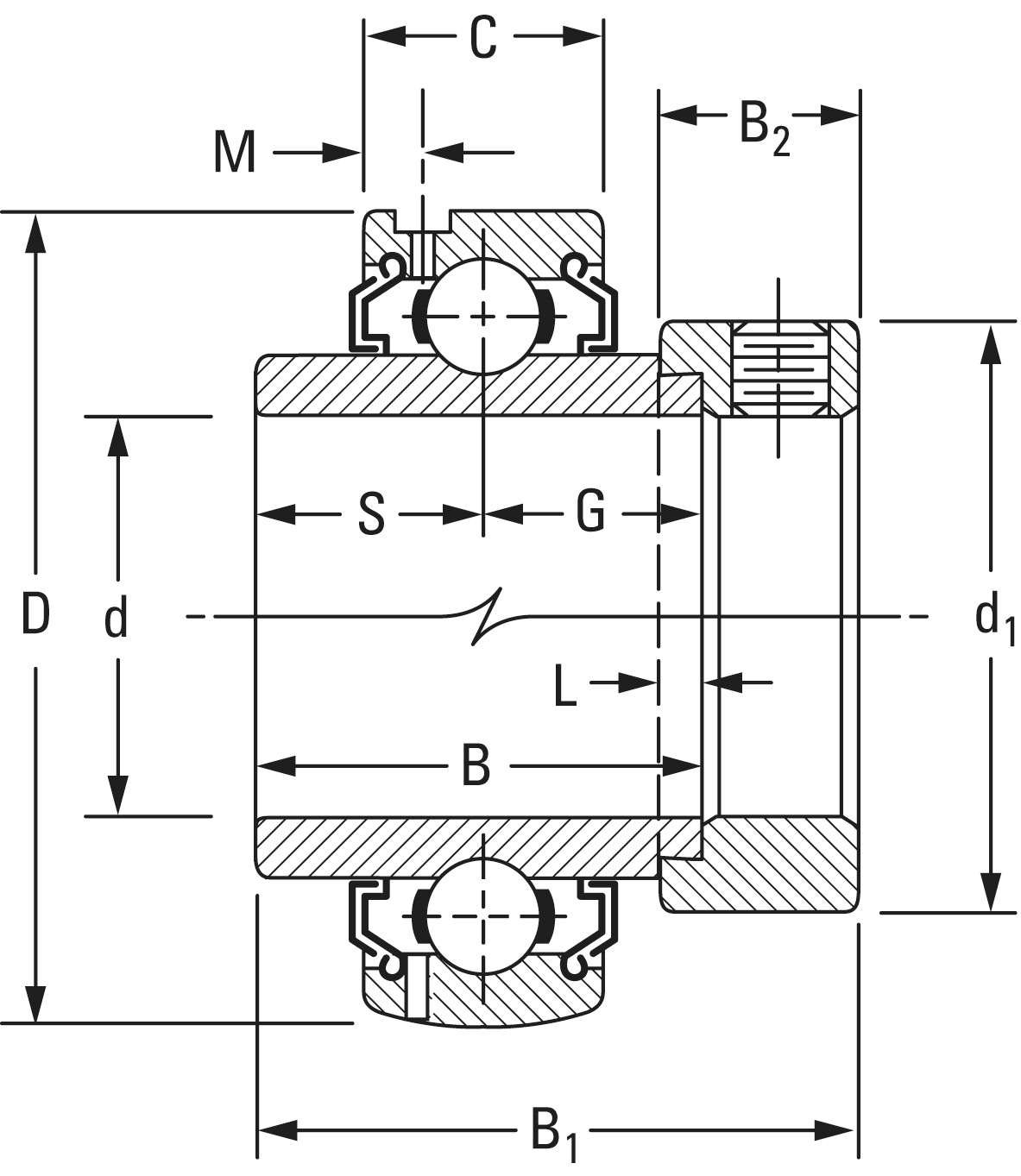

Dimensions
Outside Diameter D
52 mm
Inner Ring Width B
34.92 mm
Outside Ring Width C
15 mm
Radius r
0.6 mm
Center of Bearing from End S
17.5 mm
Set Screw Size
1/4-20
Number of Set Screws
2
Angle between Set Screws
90 º
Dimension d1
38.1 mm
Dimension M
3.86 mm
Dimension B1
44.45 mm
Dimension B2
13.5 mm
Basic Load Ratings
Static Load Rating
7800 N
Dynamic Load Rating
15500 N
