Timken G1103KLL
Fafnir® Eccentric Locking Collar Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Manufacturing Part Number
G1103KLL + COL
Series
Industrial
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Relubricatable
O.D. Type
Cylindrical OD
Sub Series
G1…KLL
Seal Type
Labyrinth Seal

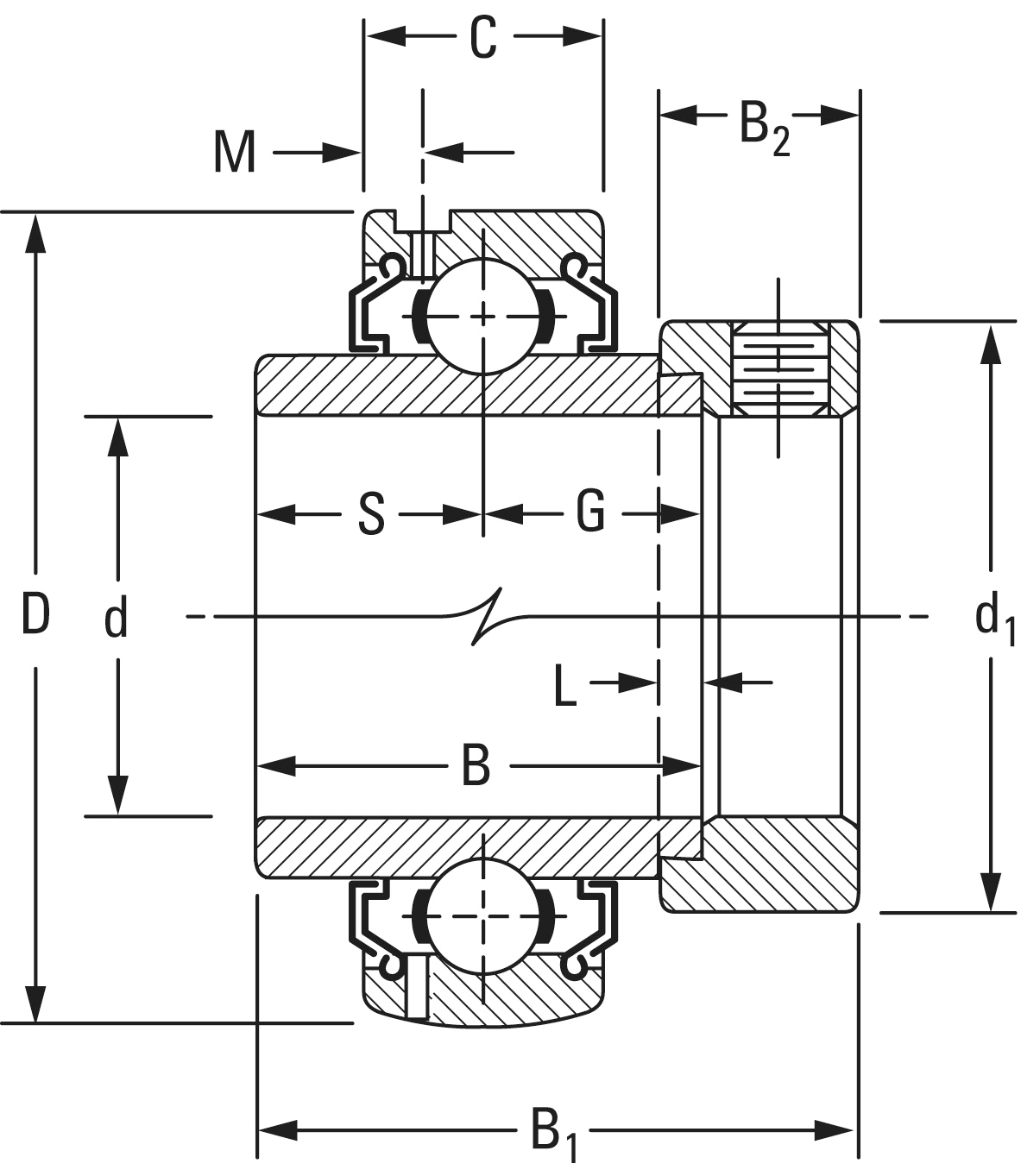

Dimensions
Outside Diameter D
62 mm
Inner Ring Width B
36.51 mm
Outside Ring Width C
18 mm
Radius r
0.6 mm
Center of Bearing from End S
18.3 mm
Set Screw Size
5/16-18
Number of Set Screws
2
Angle between Set Screws
90 º
Dimension d1
44.4 mm
Dimension M
3.96 mm
Dimension B1
48.4 mm
Dimension B2
15.9 mm
Basic Load Ratings
Static Load Rating
11300 N
Dynamic Load Rating
21600 N
