Timken G1115KRR
Fafnir® Eccentric Locking Collar Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Manufacturing Part Number
G1115KRR + COL
Series
Industrial
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Relubricatable
O.D. Type
Cylindrical OD
Sub Series
G1…KRR
Seal Type
Shroud Seal

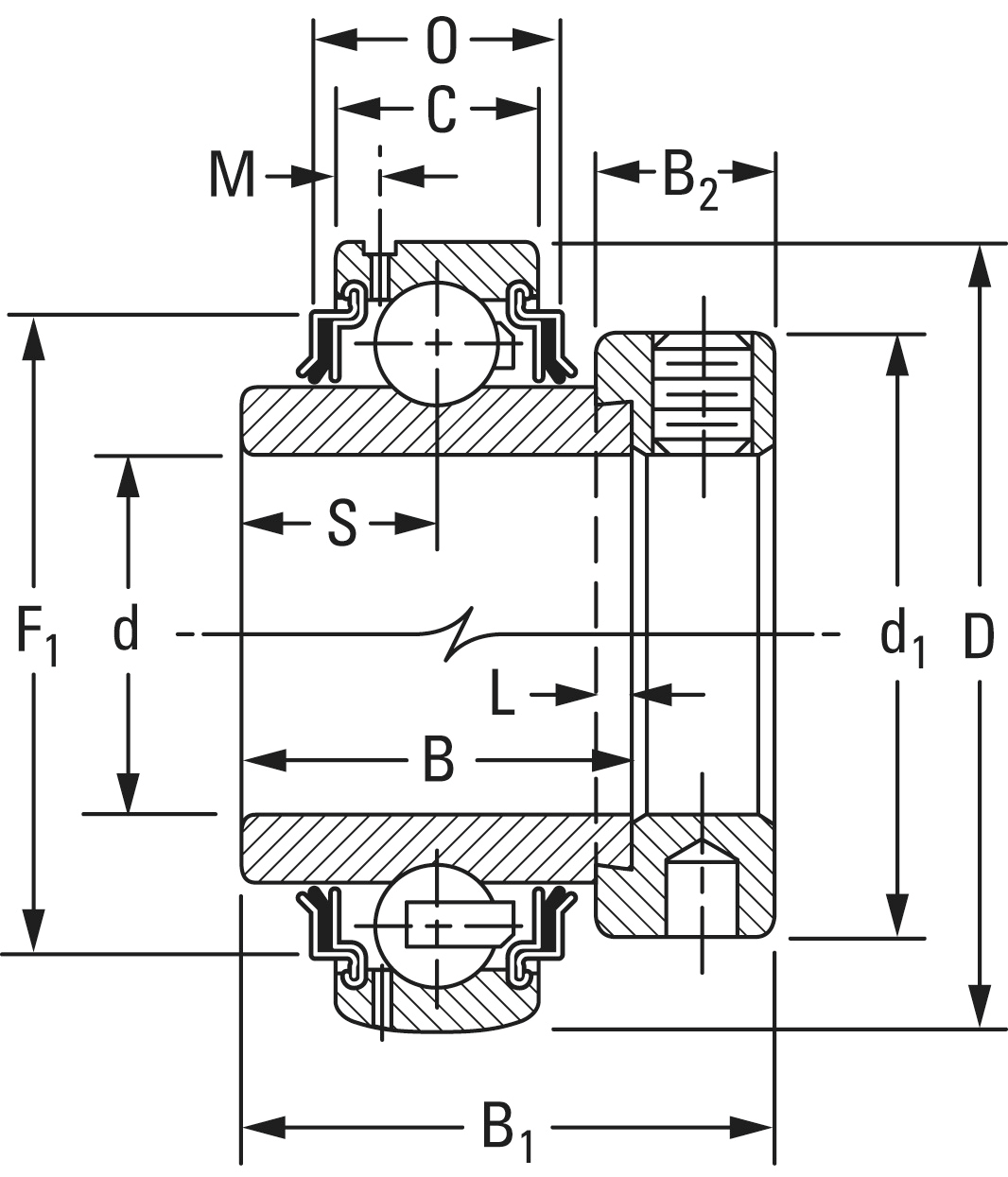

Dimensions
Outside Diameter D
90 mm
Inner Ring Width B
49.21 mm
Outside Ring Width C
23 mm
Radius r
0.6 mm
Center of Bearing from End S
24.6 mm
Set Screw Size
3/8-16
Number of Set Screws
2
Angle between Set Screws
90 º
Dimension d1
69.9 mm
Dimension M
4.7 mm
Dimension B1
62.7 mm
Dimension B2
18.3 mm
Basic Load Ratings
Static Load Rating
23200 N
Dynamic Load Rating
38900 N
