Timken G1200KRRB
Fafnir® Eccentric Locking Collar Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Manufacturing Part Number
G1200KRRB + COL
Series
Industrial
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Relubricatable
O.D. Type
Spherical OD
Sub Series
G1…KRRB
Seal Type
Shroud Seal

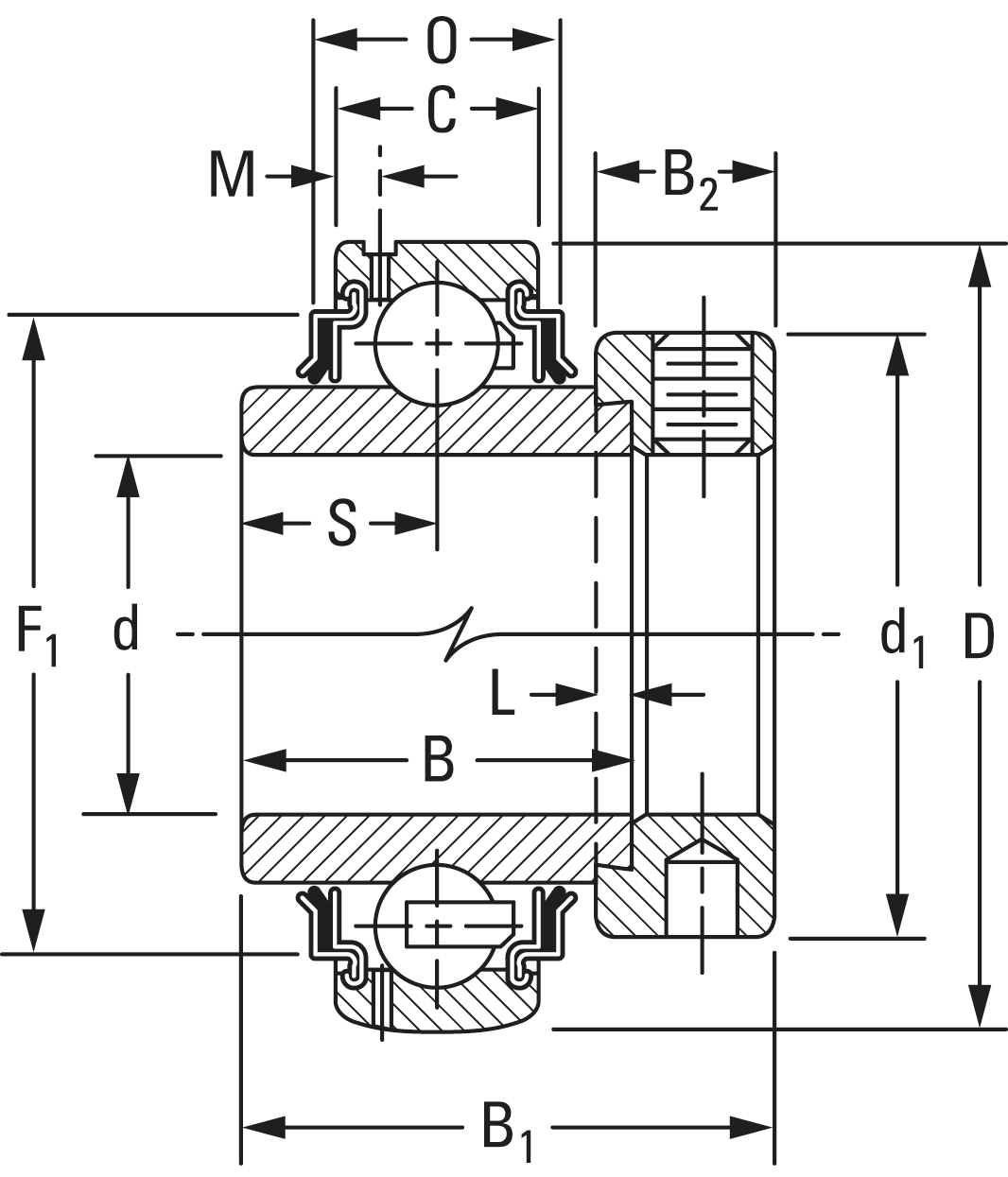

Dimensions
Outside Diameter D
100 mm
Inner Ring Width B
55.56 mm
Outside Ring Width C
24 mm
Radius r
0.6 mm
Center of Bearing from End S
27.8 mm
Set Screw Size
7/16-14
Number of Set Screws
2
Angle between Set Screws
90 º
Dimension d1
76.2 mm
Dimension M
5 mm
Dimension B1
71.4 mm
Dimension B2
20.6 mm
Basic Load Ratings
Static Load Rating
29200 N
Dynamic Load Rating
48100 N
