Timken G1207KRR
Fafnir® Eccentric Locking Collar Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Manufacturing Part Number
G1207KRR + COL
Series
Industrial
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Relubricatable
O.D. Type
Cylindrical OD
Sub Series
G1…KRR
Seal Type
Shroud Seal

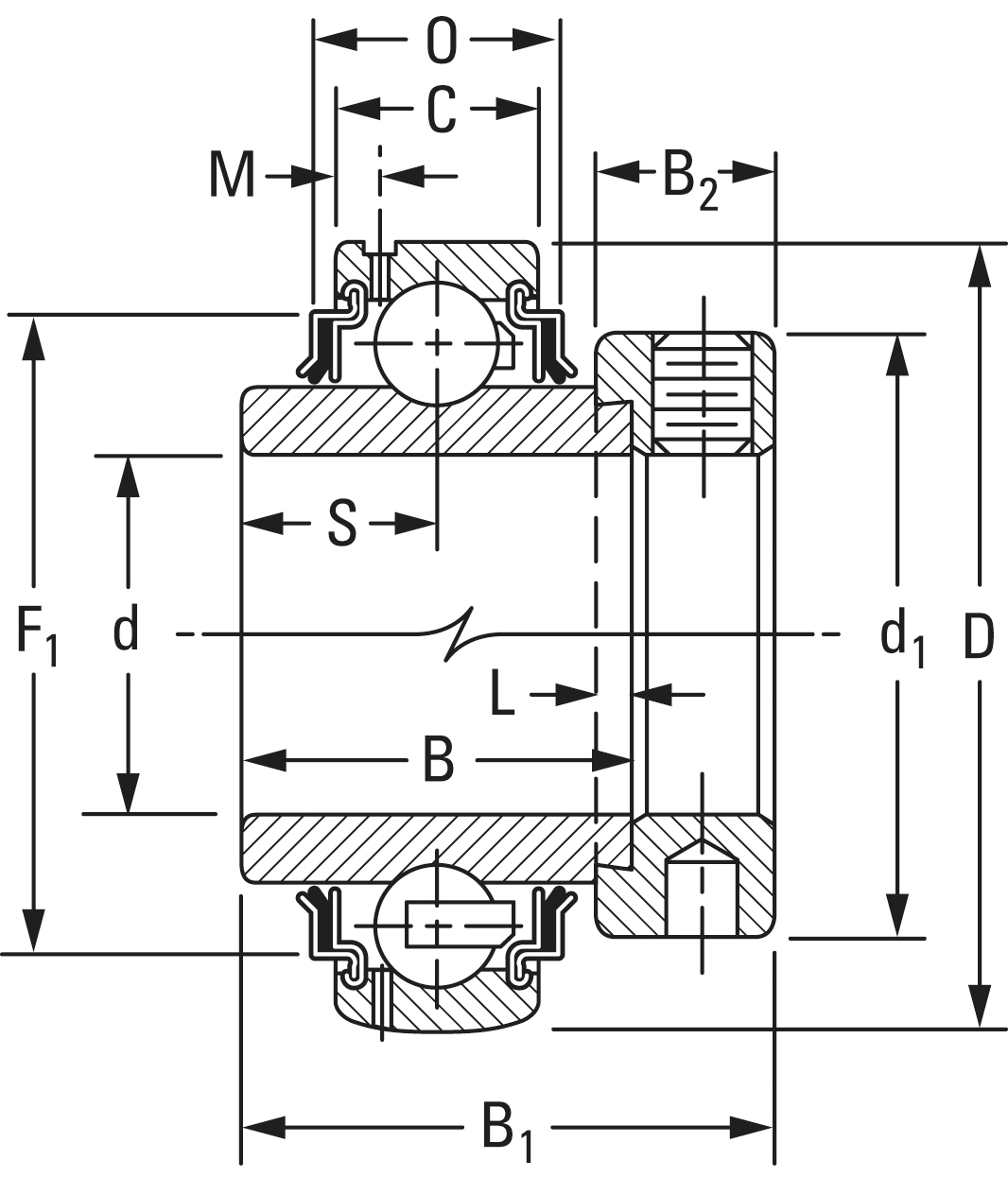

Dimensions
Outside Diameter D
110 mm
Inner Ring Width B
61.91 mm
Outside Ring Width C
27 mm
Radius r
0.6 mm
Center of Bearing from End S
31 mm
Set Screw Size
7/16-14
Number of Set Screws
2
Angle between Set Screws
90 º
Dimension d1
84.1 mm
Dimension M
5.13 mm
Dimension B1
77.8 mm
Dimension B2
22.2 mm
Basic Load Ratings
Static Load Rating
35900 N
Dynamic Load Rating
58200 N
