Timken G1210KRRB
Fafnir® Eccentric Locking Collar Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Manufacturing Part Number
G1210KRRB + COL
Series
Industrial
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Relubricatable
O.D. Type
Spherical OD
Sub Series
G1…KRRB
Seal Type
Shroud Seal

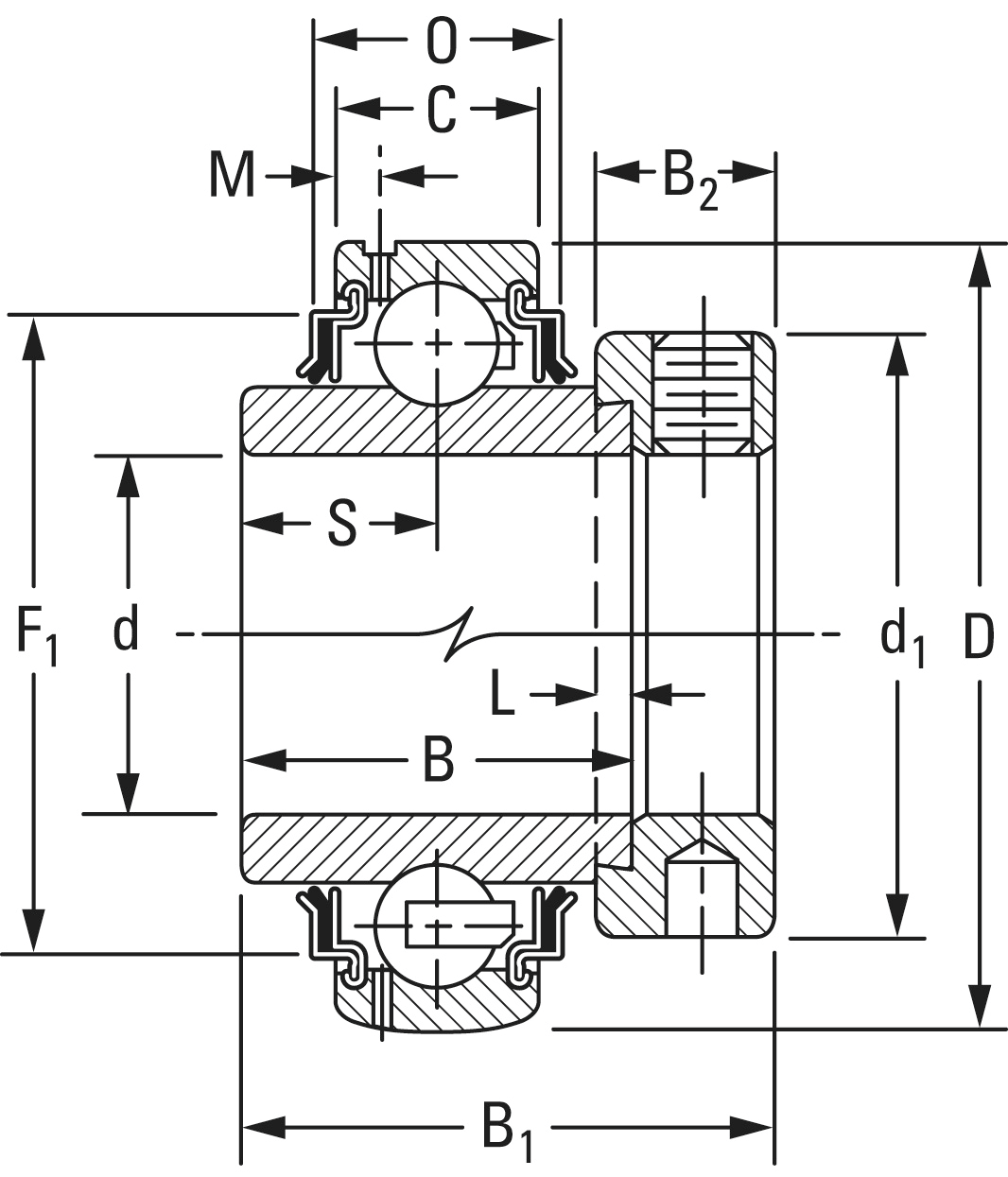

Dimensions
Outside Diameter D
125 mm
Inner Ring Width B
68.26 mm
Outside Ring Width C
28 mm
Radius r
0.6 mm
Center of Bearing from End S
34.1 mm
Set Screw Size
1/2-13
Number of Set Screws
2
Angle between Set Screws
90 º
Dimension d1
96.8 mm
Dimension M
5.08 mm
Dimension B1
85.6 mm
Dimension B2
23.8 mm
Basic Load Ratings
Static Load Rating
44000 N
Dynamic Load Rating
69000 N
