Timken GE25KPPB3
Fafnir® Eccentric Locking Collar Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Manufacturing Part Number
GE25KPPB3 + COL
Series
Industrial
Shaft Size d
25 mm
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Relubricatable
O.D. Type
Spherical OD
Sub Series
GE..KPPB,2,3,4
Seal Type
Shroud Seal

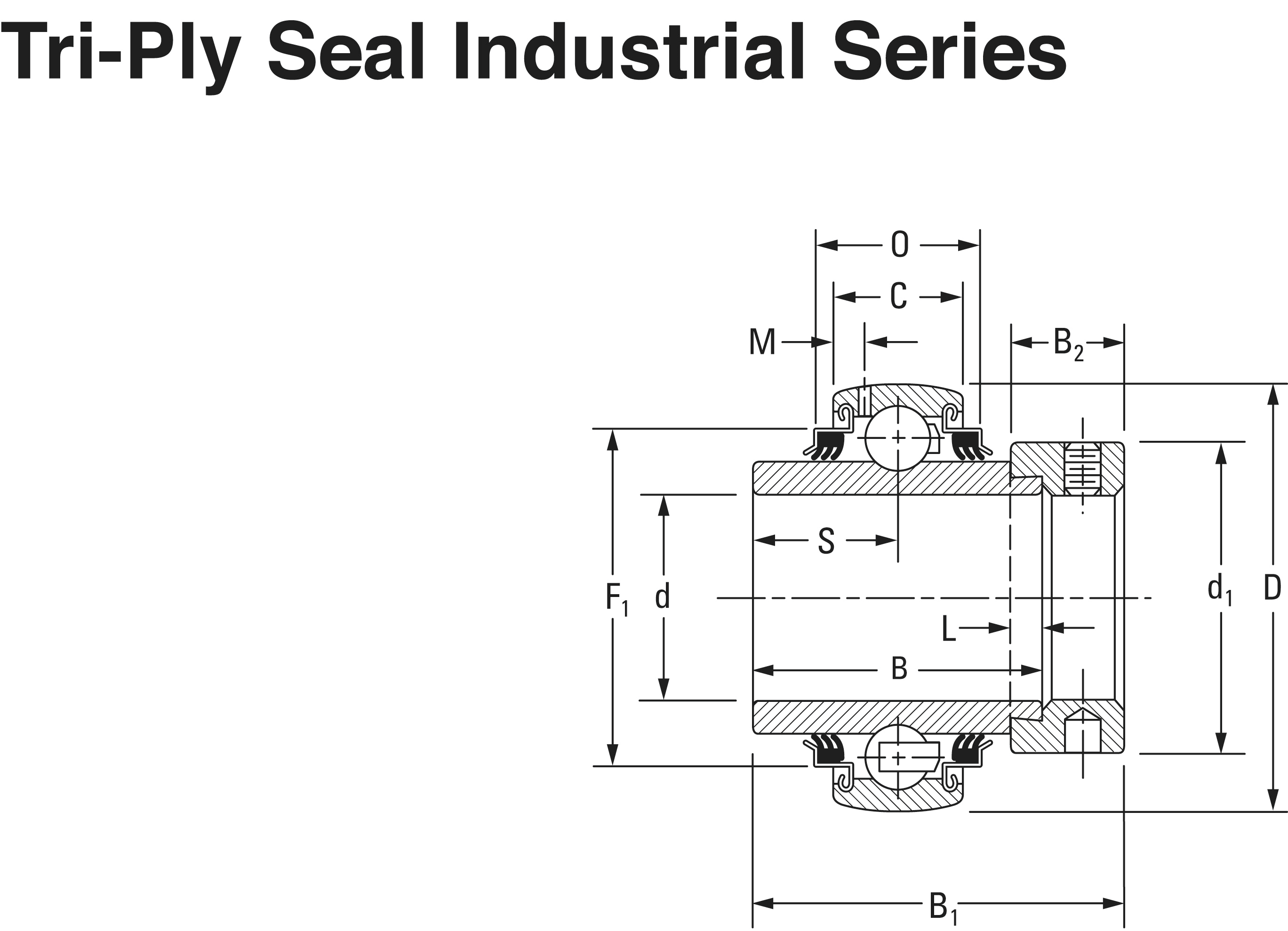

Dimensions
Outside Diameter D
52 mm
Inner Ring Width B
34.92 mm
Outside Ring Width C
15 mm
Radius r
0.6 mm
Center of Bearing from End S
17.5 mm
Set Screw Size
M6x1
Number of Set Screws
2
Angle between Set Screws
90 º
Dimension d1
38.1 mm
Dimension M
3.61 mm
Dimension B1
44.4 mm
Dimension B2
13.5 mm
Basic Load Ratings
Static Load Rating
7800 N
Dynamic Load Rating
15500 N
