Timken GE30KLLB
Fafnir® Eccentric Locking Collar Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Manufacturing Part Number
GE30KLLB
Series
Industrial
Shaft Size d
30 mm
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Relubricatable
O.D. Type
Spherical OD
Sub Series
GE..KLLB
Seal Type
Labyrinth Seal
Collar No.
SE30K
Basic Outer Ring Size
206

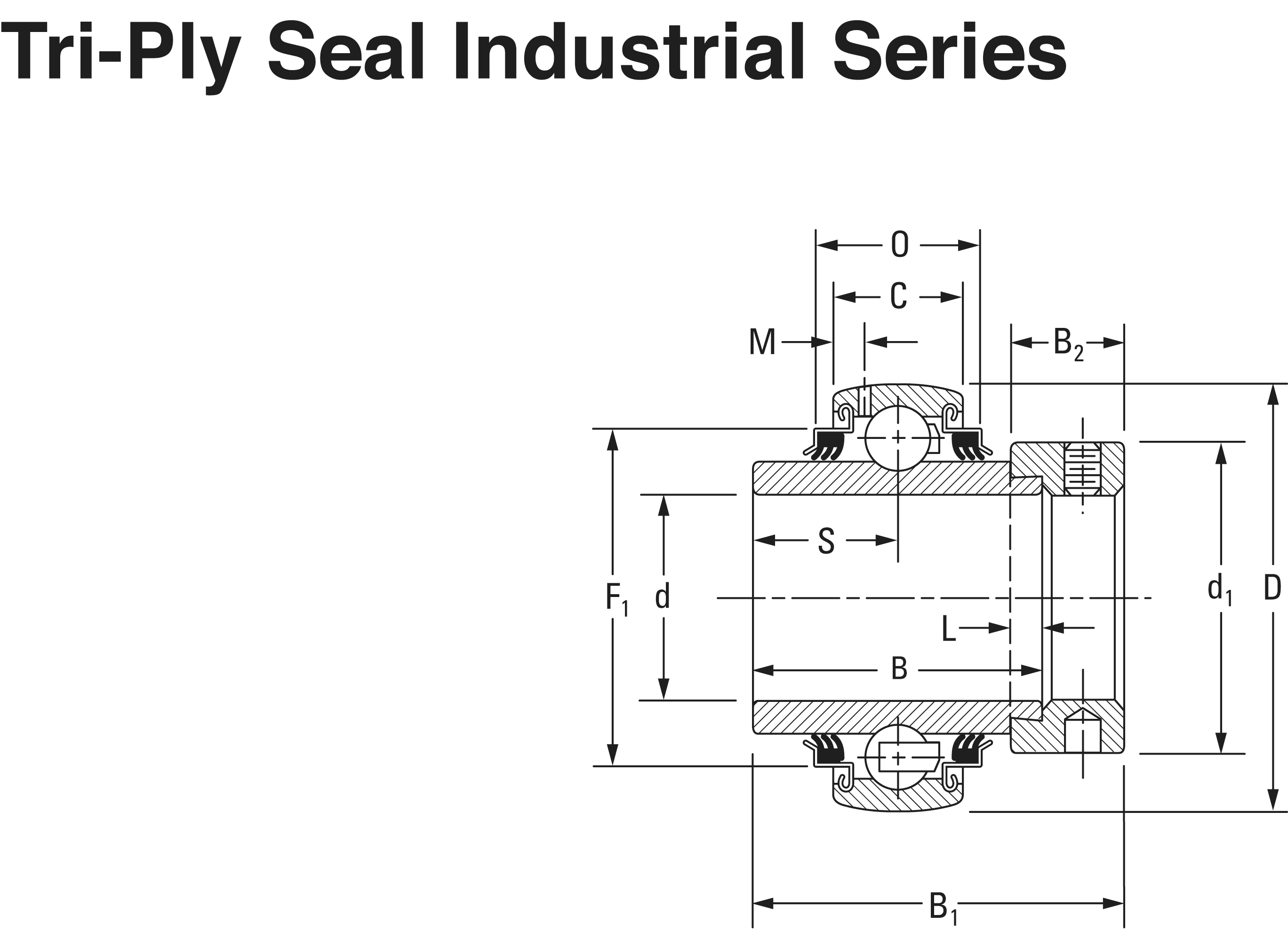

Dimensions
Outside Diameter D
62 mm
Inner Ring Width B
36.51 mm
Outside Ring Width C
18 mm
Radius r
1.02 mm
Center of Bearing from End S
18.23 mm
Set Screw Size
M8x1.25
Number of Set Screws
2
Angle between Set Screws
90 º
Dimension d1
44.07 mm
Dimension M
4.17 mm
Dimension B1
48.36 mm
Dimension B2
15.88 mm
Dimension F
40.3 mm
Basic Load Ratings
Static Load Rating
11254 N
Dynamic Load Rating
21573 N
