Timken GE30KRRB
Fafnir® Eccentric Locking Collar Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Series
Industrial
Shaft Size d
30 mm
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Relubricatable
O.D. Type
Spherical OD
Sub Series
GE..KRRB
Seal Type
Shroud Seal

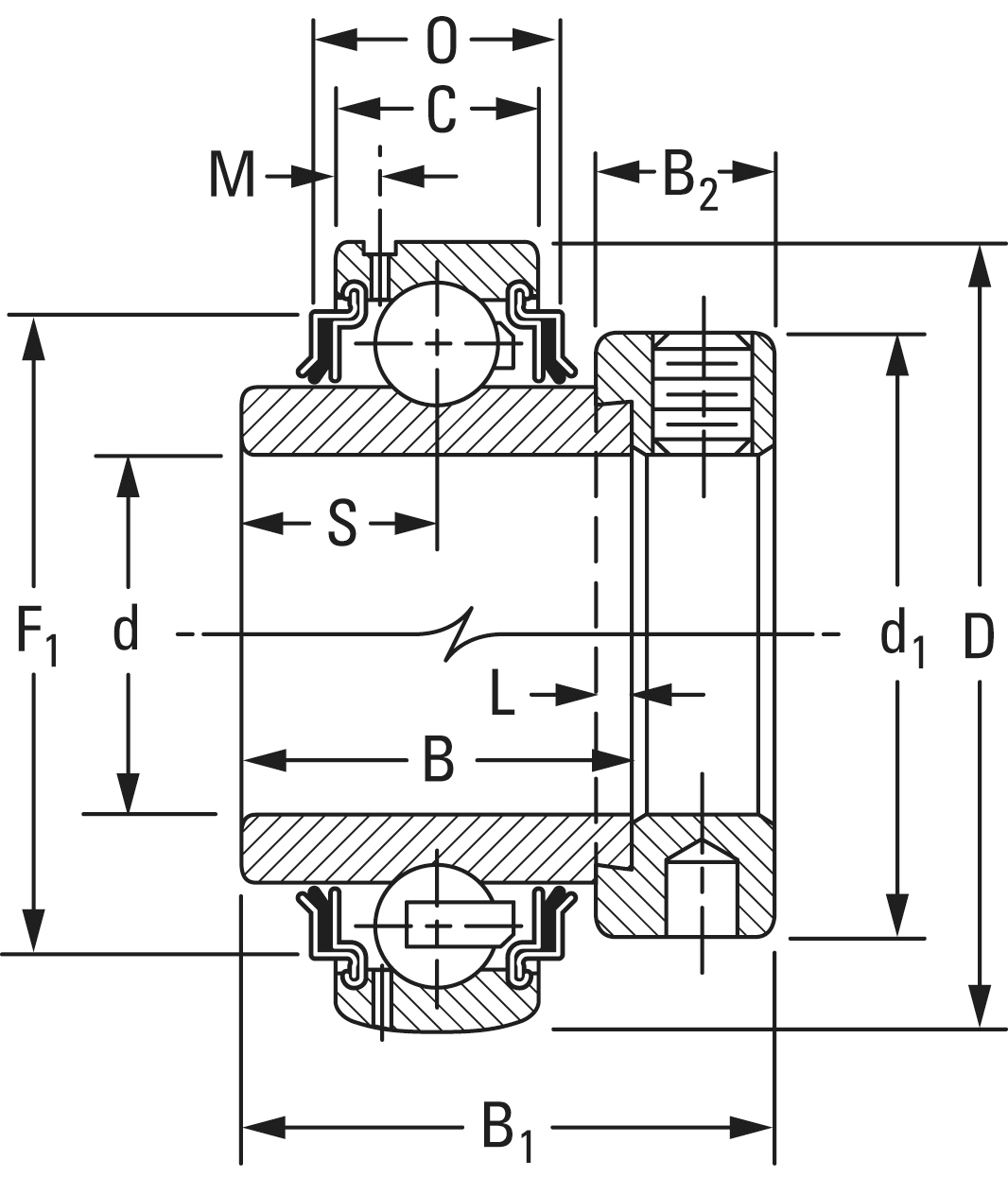

Dimensions
Outside Diameter D
62 mm
Inner Ring Width B
36.51 mm
Outside Ring Width C
18 mm
Radius r
0.6 mm
Center of Bearing from End S
18.3 mm
Set Screw Size
M8x1.25
Number of Set Screws
2
Angle between Set Screws
90 º
Dimension d1
44.1 mm
Dimension M
3.96 mm
Dimension B1
48.4 mm
Dimension B2
15.9 mm
Basic Load Ratings
Static Load Rating
11300 N
Dynamic Load Rating
21600 N
