Timken GN114KRRB
Fafnir® Eccentric Locking Collar Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Manufacturing Part Number
GN114KRRB + COL
Series
Medium-Duty
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Relubricatable
O.D. Type
Spherical OD
Sub Series
GN..KRRB
Seal Type
Shroud Seal

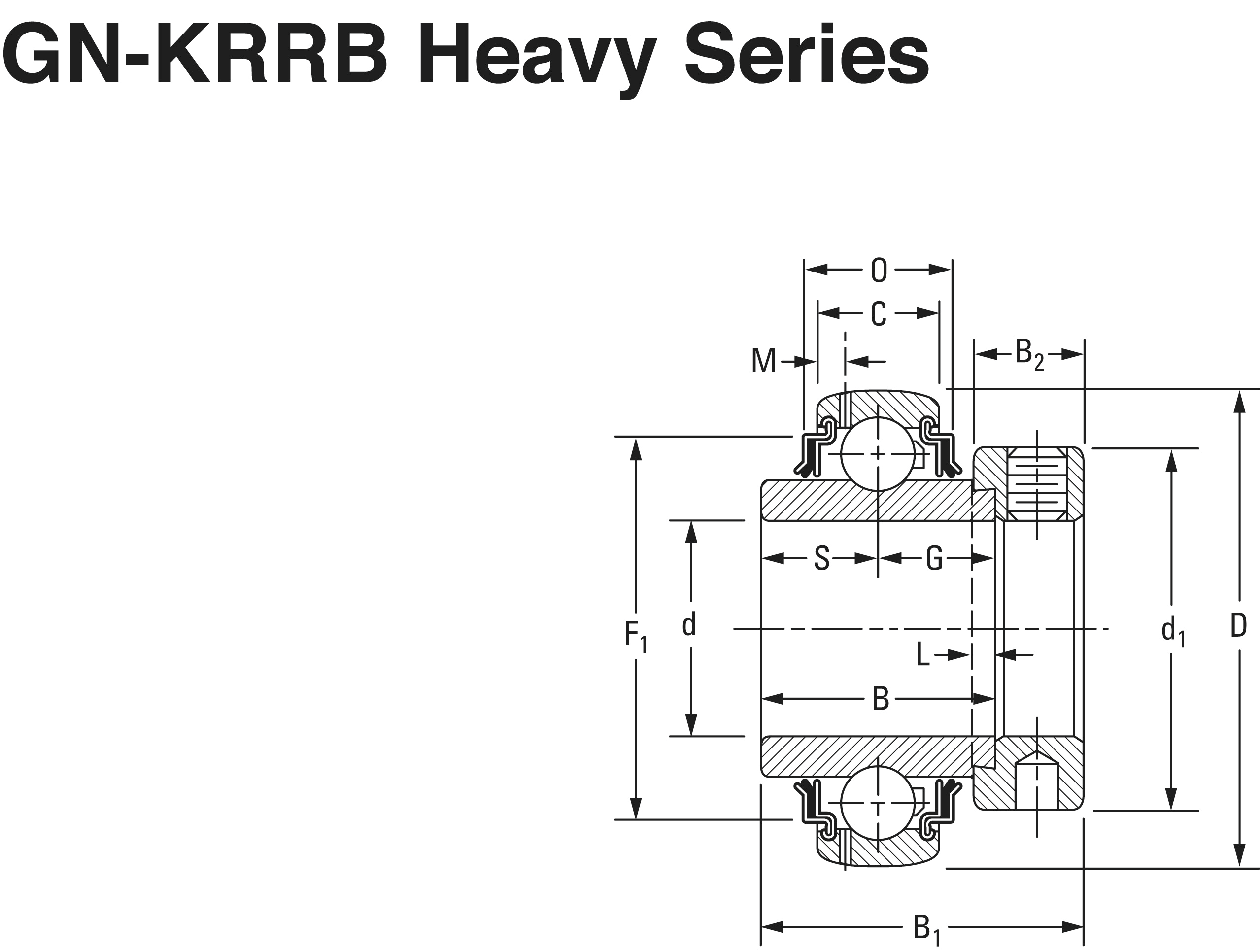

Dimensions
Outside Diameter D
110 mm
Inner Ring Width B
49.21 mm
Outside Ring Width C
29 mm
Radius r
0.6 mm
Center of Bearing from End S
24.6 mm
Set Screw Size
3/8-16
Number of Set Screws
2
Angle between Set Screws
90 º
Dimension d1
75.8 mm
Dimension M
5.36 mm
Dimension B1
66.7 mm
Dimension B2
22.2 mm
Basic Load Ratings
Static Load Rating
37900 N
Dynamic Load Rating
68600 N
