Timken GN203KRRB
Fafnir® Eccentric Locking Collar Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Manufacturing Part Number
GN203KRRB + COL
Series
Medium-Duty
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Relubricatable
O.D. Type
Spherical OD
Sub Series
GN..KRRB
Seal Type
Shroud Seal

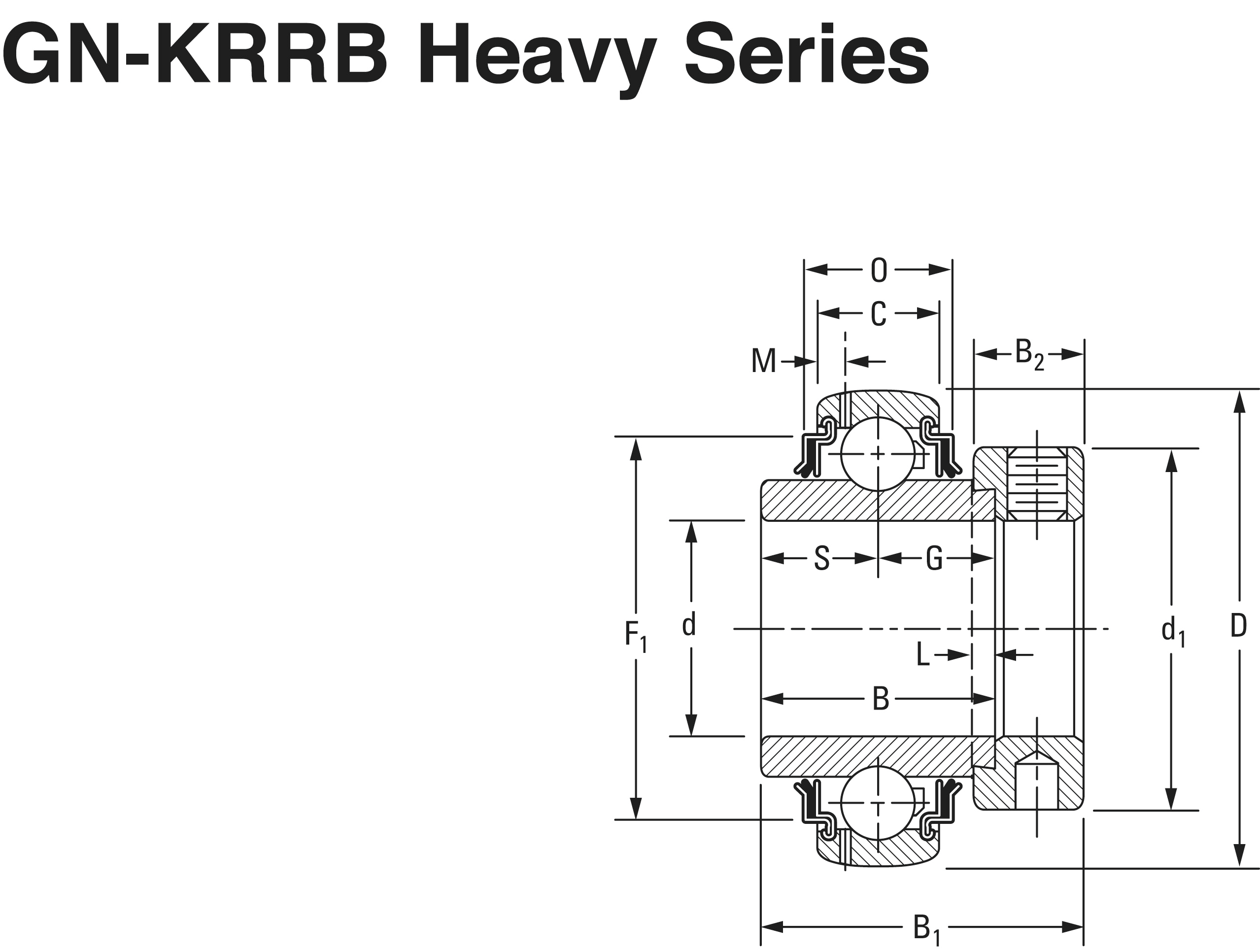

Dimensions
Outside Diameter D
120 mm
Inner Ring Width B
55.56 mm
Outside Ring Width C
31 mm
Radius r
0.6 mm
Center of Bearing from End S
27.8 mm
Set Screw Size
7/16-14
Number of Set Screws
2
Angle between Set Screws
90 º
Dimension d1
82.6 mm
Dimension M
5.49 mm
Dimension B1
73 mm
Dimension B2
22.2 mm
Basic Load Ratings
Static Load Rating
44600 N
Dynamic Load Rating
79300 N
