Timken GN211KRRB
Fafnir® Eccentric Locking Collar Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Manufacturing Part Number
GN211KRRB + COL
Series
Medium-Duty
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Relubricatable
O.D. Type
Spherical OD
Sub Series
GN..KRRB
Seal Type
Shroud Seal

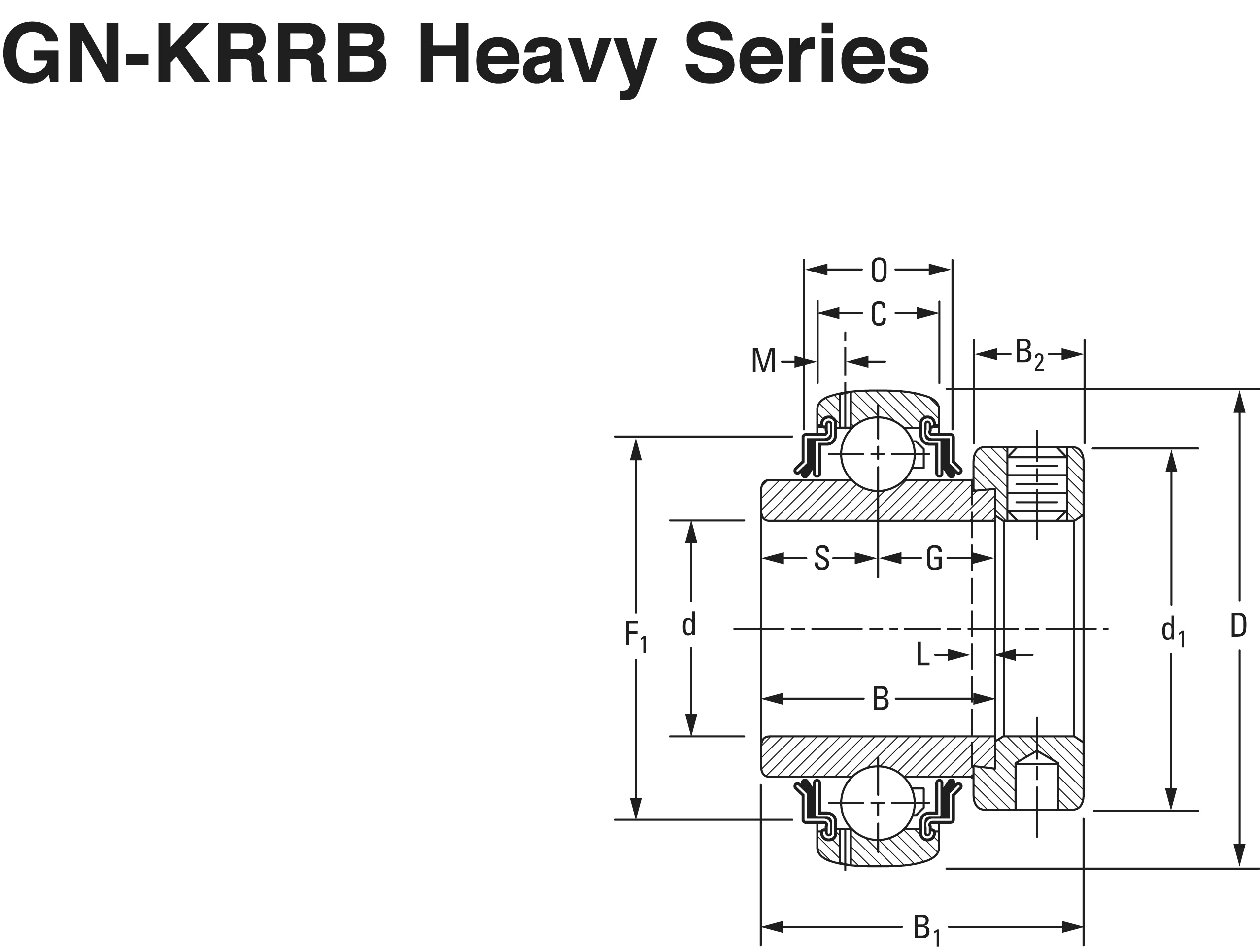

Dimensions
Outside Diameter D
150 mm
Inner Ring Width B
68.26 mm
Outside Ring Width C
37 mm
Radius r
0.6 mm
Center of Bearing from End S
34.1 mm
Set Screw Size
1/2-13
Number of Set Screws
2
Angle between Set Screws
90 º
Dimension d1
101.6 mm
Dimension M
6.73 mm
Dimension B1
88.9 mm
Dimension B2
27 mm
Basic Load Ratings
Static Load Rating
68000 N
Dynamic Load Rating
115500 N
