Timken GRA101RR
Fafnir® Eccentric Locking Collar Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Series
Standard
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Relubricatable
O.D. Type
Cylindrical OD
Sub Series
GRA..RR
Seal Type
Molded Shroud

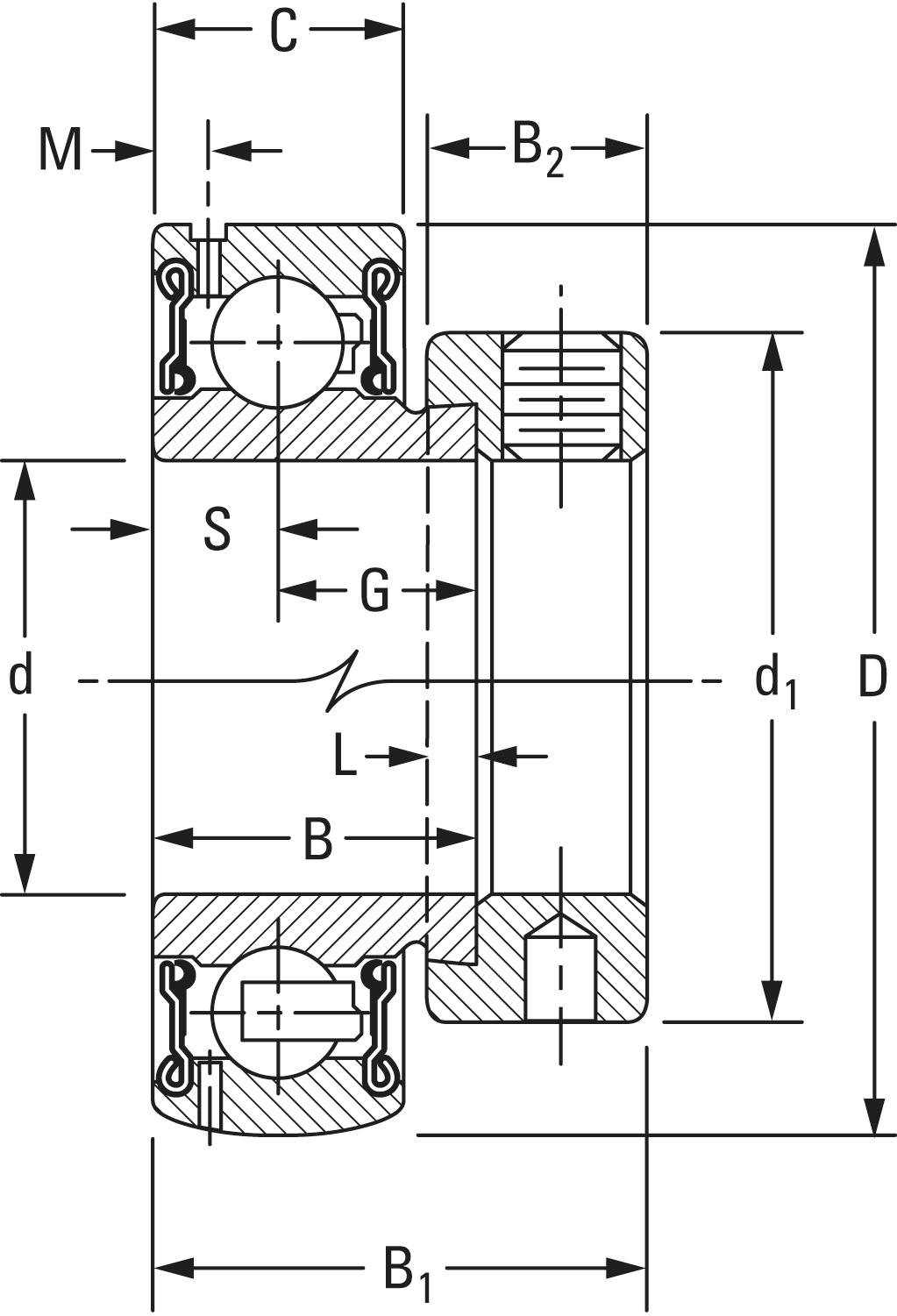

Dimensions
Outside Diameter D
62 mm
Inner Ring Width B
23.83 mm
Outside Ring Width C
18 mm
Radius r
0.6 mm
Center of Bearing from End S
8.99 mm
Set Screw Size
5/16-18
Number of Set Screws
2
Angle between Set Screws
90 º
Dimension d1
44.1 mm
Dimension M
4.17 mm
Dimension B1
35.7 mm
Dimension B2
15.9 mm
Basic Load Ratings
Static Load Rating
11300 N
Dynamic Load Rating
21600 N
