Timken GRA115RRB2
Fafnir® Eccentric Locking Collar Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Manufacturing Part Number
GRA115RRB2 + COL
Series
Standard
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Relubricatable
O.D. Type
Spherical OD
Sub Series
GRA..RRB
Seal Type
Molded Shroud

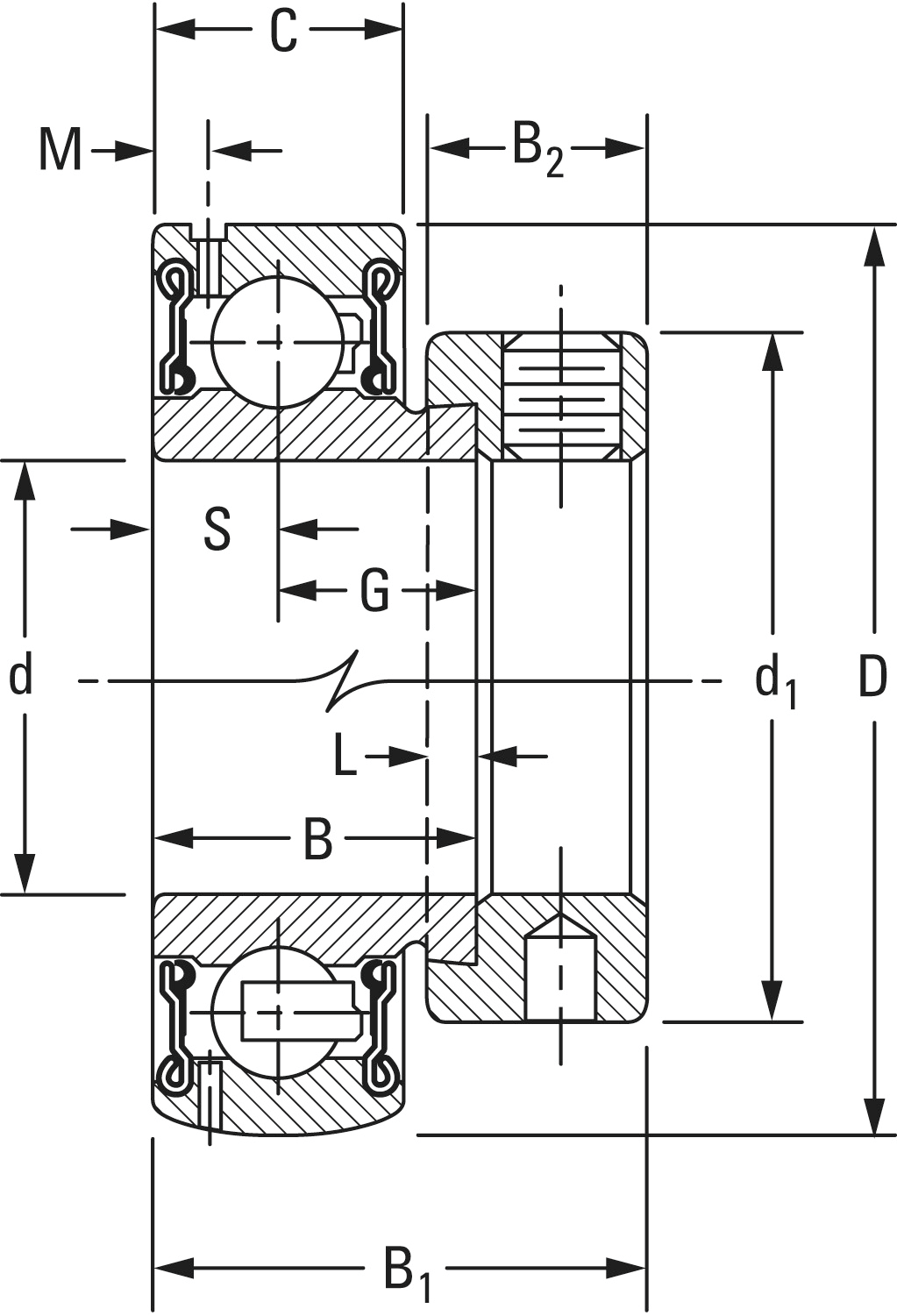

Dimensions
Outside Diameter D
90 mm
Inner Ring Width B
30.18 mm
Outside Ring Width C
22 mm
Radius r
0.6 mm
Center of Bearing from End S
11 mm
Set Screw Size
7/16-14
Number of Set Screws
2
Angle between Set Screws
90 º
Dimension d1
69.9 mm
Dimension M
4.44 mm
Dimension B1
43.7 mm
Dimension B2
18.3 mm
Basic Load Ratings
Static Load Rating
23200 N
Dynamic Load Rating
38900 N
