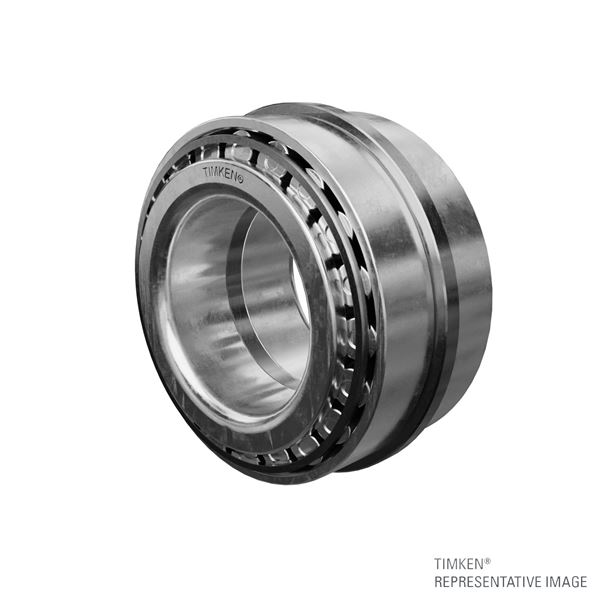

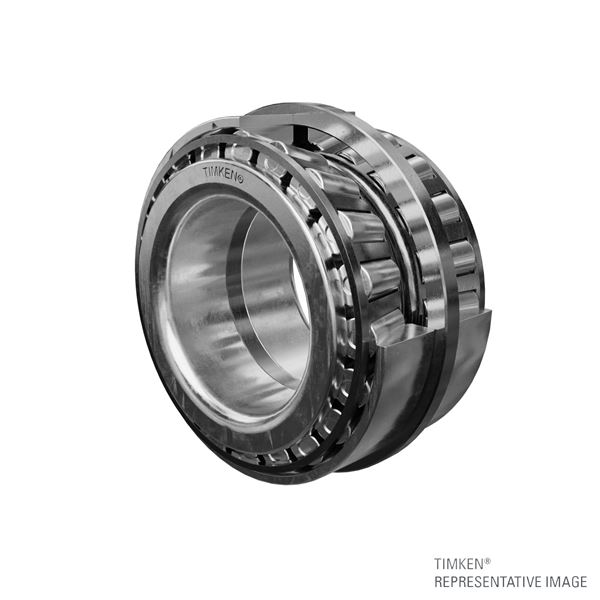

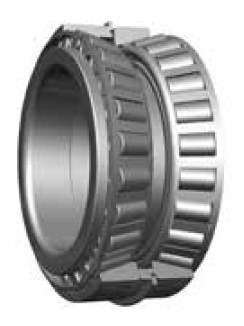

Timken JHM318448 – JHM318410 (HM318448XS – HM318410ES)
Tapered Roller Bearings - SR (Matched Bearing Assembly, SET-RIGHT™)
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
JHM318448 – JHM318410 (HM318448XS – HM318410ES)
Specifications
Cone Part Number
JHM318448
Cup Part Number
JHM318410
Inner Spacer Part Number
HM318448XS
Outer Spacer Part Number
HM318410ES
Snap Ring Part Number
K516800R
Design Unit
Metric
Dimensions
d - Bore
90 mm
D - Cup Outer Diameter
155 mm
T - Width
98 mm
C - Width
80.314 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
3.050 mm
r - Cup Backface "To Clear" Radius2
0.8 mm
db - Cone Backface Backing Diameter
106 mm
Da - Cup Frontface Backing Diameter
149.10 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (90 million revolutions)3
102000 N
C1 - Dynamic Radial Rating (1 million revolutions)4
683000 N
C5
59400 N
C906
177000 N
Factors
K - Factor7
1.71
e - ISO Factor8
0.34
Y1 - ISO Factor9
1.98
Y2 - ISO Factor10
2.95
