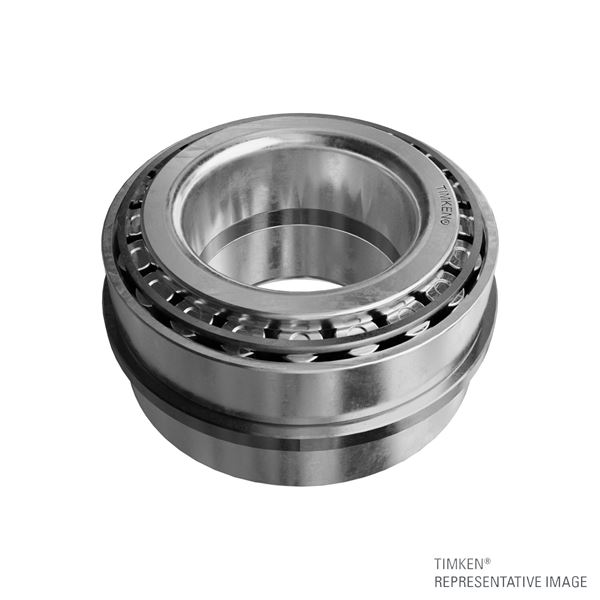

Timken JM719149 – JM719113 (M719149XS – M719113ES)
Tapered Roller Bearings - SR (Matched Bearing Assembly, SET-RIGHT™)
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
JM719149 – JM719113 (M719149XS – M719113ES)
Specifications
Cone Part Number
JM719149
Cup Part Number
JM719113
Inner Spacer Part Number
M719149XS
Outer Spacer Part Number
M719113ES
Snap Ring Part Number
K518773R
Design Unit
Metric
Dimensions
d - Bore
95 mm
D - Cup Outer Diameter
150 mm
T - Width
78 mm
C - Width
61.466 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
3.050 mm
r - Cup Backface "To Clear" Radius2
0.8 mm
db - Cone Backface Backing Diameter
109 mm
Da - Cup Frontface Backing Diameter
143.26 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (90 million revolutions)3
55700 N
C1 - Dynamic Radial Rating (1 million revolutions)4
374000 N
C5
42100 N
C906
96900 N
Factors
K - Factor7
1.32
e - ISO Factor8
0.44
Y1 - ISO Factor9
1.53
Y2 - ISO Factor10
2.27
