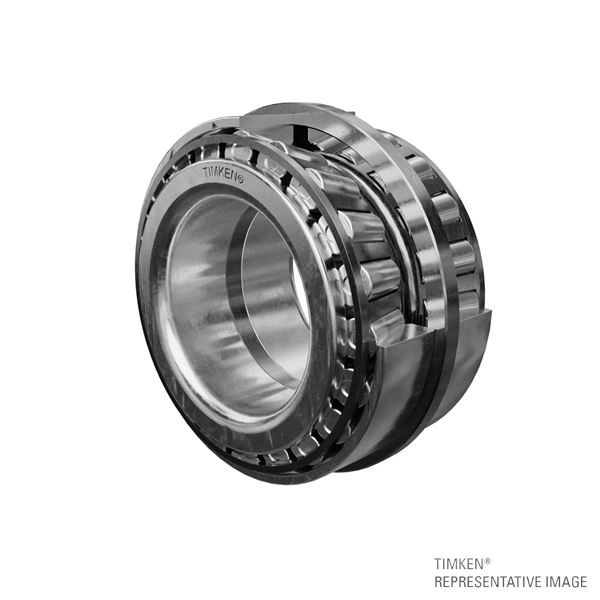

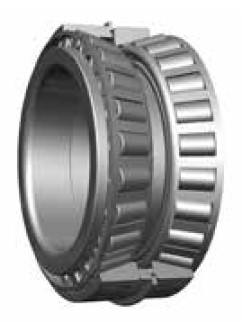

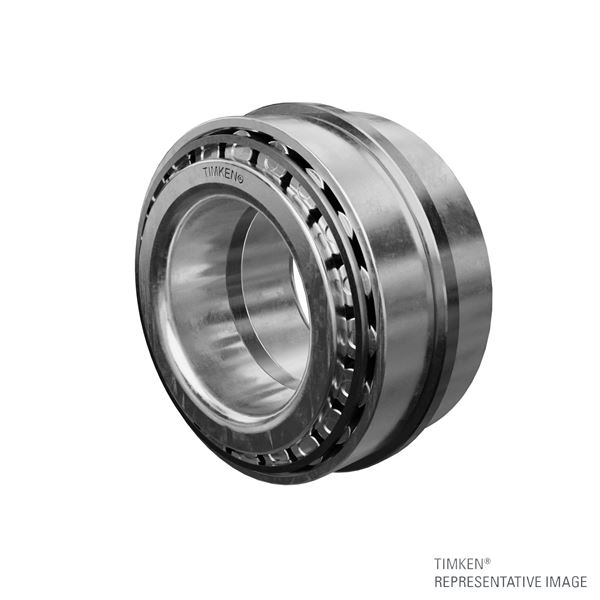

Timken JM515649 – JM515610 (M515649XS – M515610ES)
Tapered Roller Bearings - SR (Matched Bearing Assembly, SET-RIGHT™)
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
JM515649 – JM515610 (M515649XS – M515610ES)
Specifications
Cone Part Number
JM515649
Cup Part Number
JM515610
Inner Spacer Part Number
M515649XS
Outer Spacer Part Number
M515610ES
Snap Ring Part Number
K524112R
Design Unit
Metric
Dimensions
d - Bore
80 mm
D - Cup Outer Diameter
130 mm
T - Width
78 mm
C - Width
64.452 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
3.050 mm
r - Cup Backface "To Clear" Radius2
0.6 mm
db - Cone Backface Backing Diameter
94 mm
Da - Cup Frontface Backing Diameter
125.00 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (90 million revolutions)3
61000 N
C1 - Dynamic Radial Rating (1 million revolutions)4
410000 N
C5
40600 N
C906
106000 N
Factors
K - Factor7
1.5
e - ISO Factor8
0.39
Y1 - ISO Factor9
1.74
Y2 - ISO Factor10
2.59
