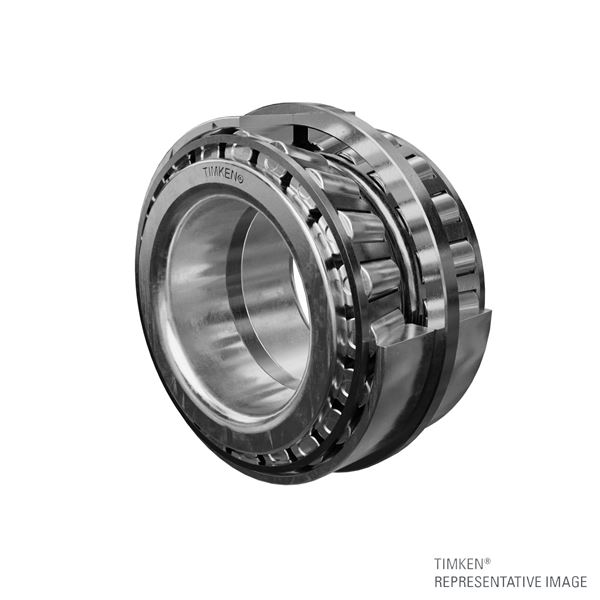

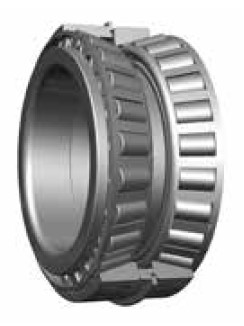

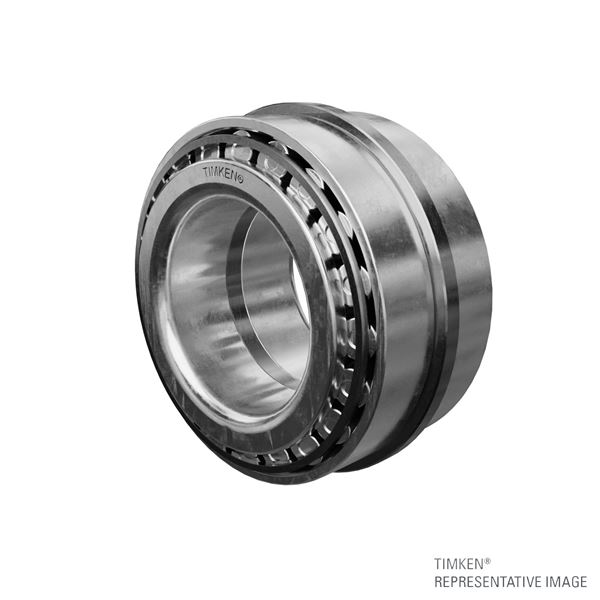

Timken JM718149 – JM718110 (M718149XS – M718110ES)
Tapered Roller Bearings - SR (Matched Bearing Assembly, SET-RIGHT™)
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
JM718149 – JM718110 (M718149XS – M718110ES)
Specifications
Cone Part Number
JM718149
Cup Part Number
JM718110
Inner Spacer Part Number
M718149XS
Outer Spacer Part Number
M718110ES
Snap Ring Part Number
K524653R
Design Unit
Metric
Dimensions
d - Bore
90 mm
D - Cup Outer Diameter
145 mm
T - Width
78.974 mm
C - Width
62.489 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
3.050 mm
r - Cup Backface "To Clear" Radius2
1.0 mm
db - Cone Backface Backing Diameter
106 mm
Da - Cup Frontface Backing Diameter
138.94 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (90 million revolutions)3
57700 N
C1 - Dynamic Radial Rating (1 million revolutions)4
387000 N
C5
43900 N
C906
100000 N
Factors
K - Factor7
1.31
e - ISO Factor8
0.44
Y1 - ISO Factor9
1.52
Y2 - ISO Factor10
2.26
