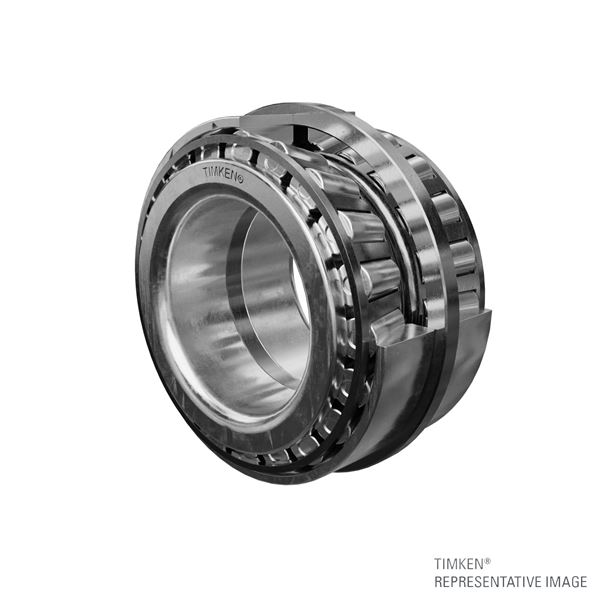

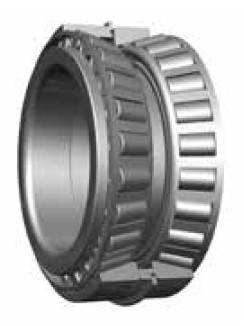

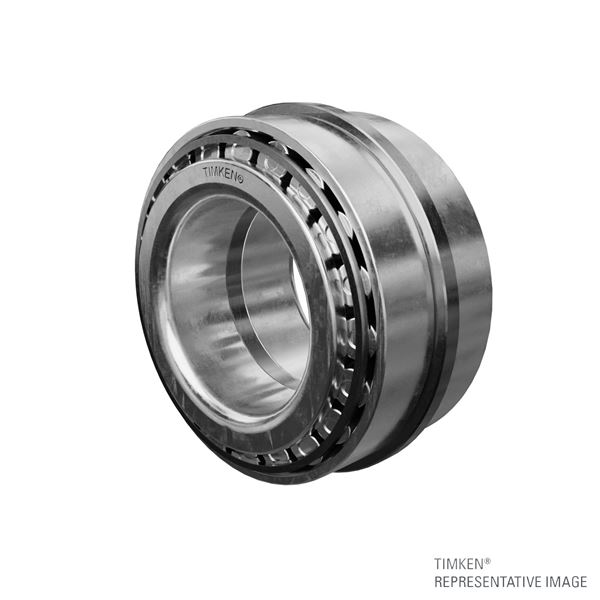

Timken JLM508748 – JLM508710 (LM508748XS – LM508710ES)
Tapered Roller Bearings - SR (Matched Bearing Assembly, SET-RIGHT™)
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
JLM508748 – JLM508710 (LM508748XS – LM508710ES)
Specifications
Cone Part Number
JLM508748
Cup Part Number
JLM508710
Inner Spacer Part Number
LM508748XS
Outer Spacer Part Number
LM508710ES
Snap Ring Part Number
K518779R
Design Unit
Metric
Dimensions
d - Bore
60 mm
D - Cup Outer Diameter
95 mm
T - Width
54 mm
C - Width
43.491 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
5.080 mm
r - Cup Backface "To Clear" Radius2
0.5 mm
db - Cone Backface Backing Diameter
75 mm
Da - Cup Frontface Backing Diameter
91.90 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (90 million revolutions)3
25300 N
C1 - Dynamic Radial Rating (1 million revolutions)4
170000 N
C5
17400 N
C906
44000 N
Factors
K - Factor7
1.45
e - ISO Factor8
0.4
Y1 - ISO Factor9
1.68
Y2 - ISO Factor10
2.5
