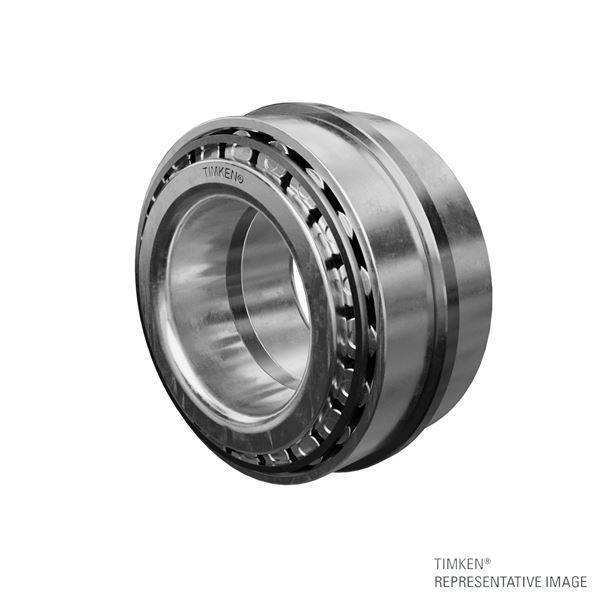

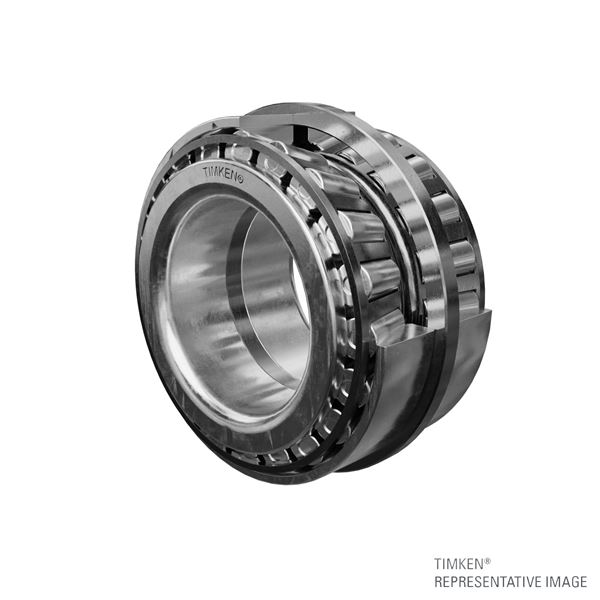

Timken JLM710949C – JLM710910 (LM710949XS – LM710910ES)
Tapered Roller Bearings - SR (Matched Bearing Assembly, SET-RIGHT™)
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
JLM710949C – JLM710910 (LM710949XS – LM710910ES)
Specifications
Cone Part Number
JLM710949C
Cup Part Number
JLM710910
Inner Spacer Part Number
LM710949XS
Outer Spacer Part Number
LM710910ES
Snap Ring Part Number
K518781R
Design Unit
Metric
Dimensions
d - Bore
65 mm
D - Cup Outer Diameter
105 mm
T - Width
54 mm
C - Width
42.515 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
3.050 mm
r - Cup Backface "To Clear" Radius2
0.5 mm
db - Cone Backface Backing Diameter
78 mm
Da - Cup Frontface Backing Diameter
101.09 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (90 million revolutions)3
33200 N
C1 - Dynamic Radial Rating (1 million revolutions)4
223000 N
C5
25800 N
C906
57900 N
Factors
K - Factor7
1.29
e - ISO Factor8
0.45
Y1 - ISO Factor9
1.49
Y2 - ISO Factor10
2.21
