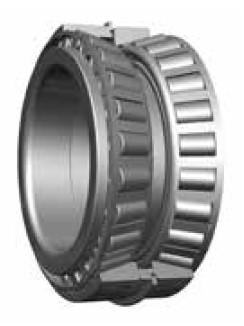

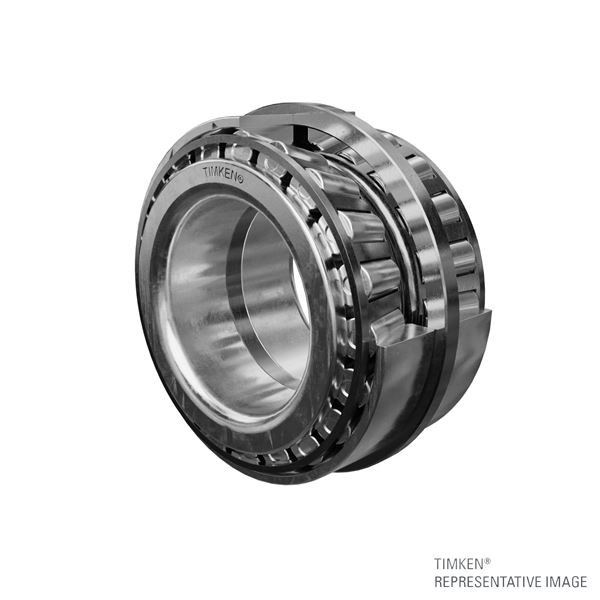

Timken JM511946 – JM511910 (JXH6558A – JYH11058RSR)
Tapered Roller Bearings - SR (Matched Bearing Assembly, SET-RIGHT™)
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
JM511946 – JM511910 (JXH6558A – JYH11058RSR)
Specifications
Cone Part Number
JM511946
Cup Part Number
JM511910
Inner Spacer Part Number
JXH6558A
Outer Spacer Part Number
JYH11058RSR
Snap Ring Part Number
K518419R
Design Unit
Metric
Dimensions
d - Bore
65 mm
D - Cup Outer Diameter
110 mm
T - Width
114.3 mm
C - Width
102.718 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
3.050 mm
r - Cup Backface "To Clear" Radius2
0.8 mm
db - Cone Backface Backing Diameter
78 mm
Da - Cup Frontface Backing Diameter
105.40 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (90 million revolutions)3
43300 N
C1 - Dynamic Radial Rating (1 million revolutions)4
291000 N
C5
29800 N
C906
75400 N
Factors
K - Factor7
1.45
e - ISO Factor8
0.4
Y1 - ISO Factor9
1.68
Y2 - ISO Factor10
2.5
