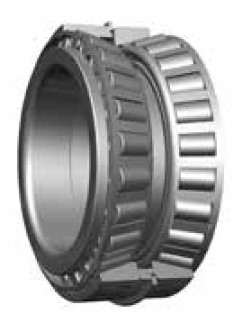

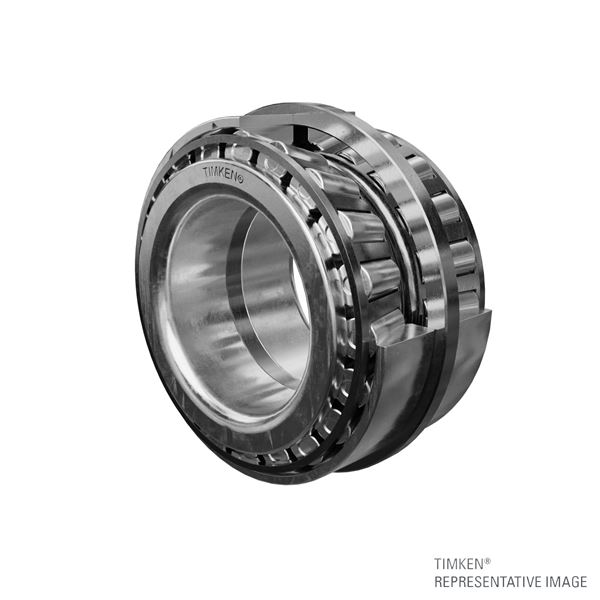

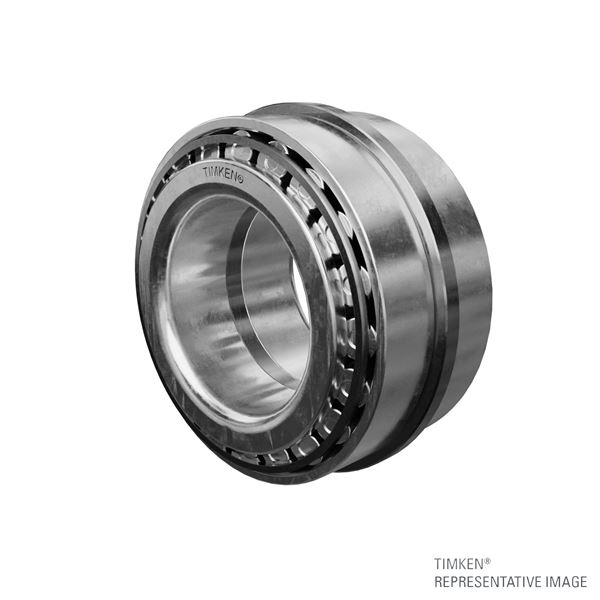

Timken JM714249 – JM714210 (M714249XS – M714210ES)
Tapered Roller Bearings - SR (Matched Bearing Assembly, SET-RIGHT™)
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
JM714249 – JM714210 (M714249XS – M714210ES)
Specifications
Cone Part Number
JM714249
Cup Part Number
JM714210
Inner Spacer Part Number
M714249XS
Outer Spacer Part Number
M714210ES
Snap Ring Part Number
K518771R
Design Unit
Metric
Dimensions
d - Bore
75 mm
D - Cup Outer Diameter
120 mm
T - Width
69 mm
C - Width
57 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
3.050 mm
r - Cup Backface "To Clear" Radius2
0.6 mm
db - Cone Backface Backing Diameter
88 mm
Da - Cup Frontface Backing Diameter
115.10 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (90 million revolutions)3
41300 N
C1 - Dynamic Radial Rating (1 million revolutions)4
277000 N
C5
31400 N
C906
71900 N
Factors
K - Factor7
1.31
e - ISO Factor8
0.44
Y1 - ISO Factor9
1.52
Y2 - ISO Factor10
2.26
