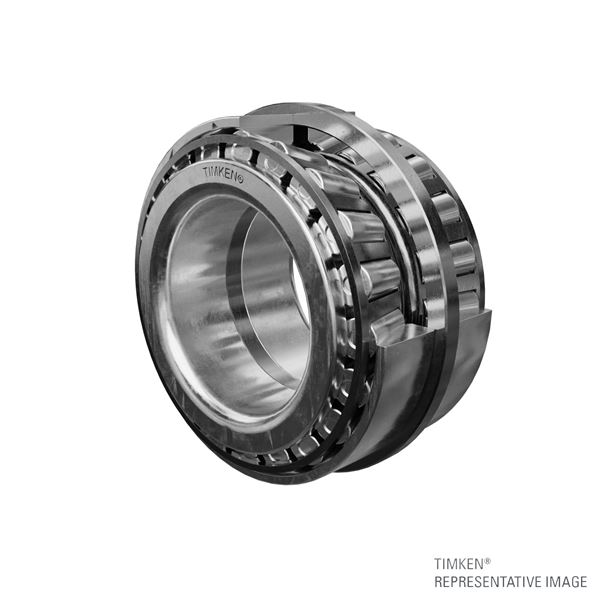

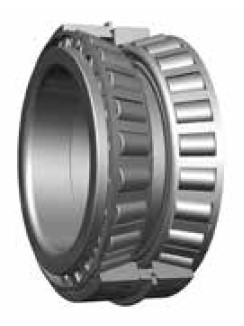

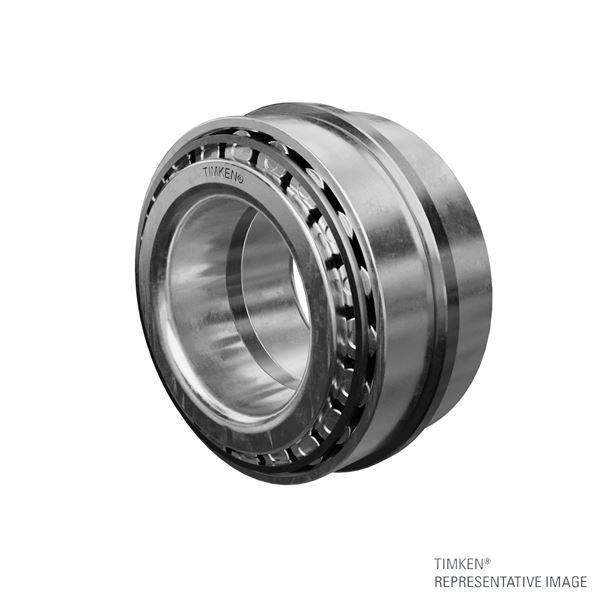

Timken JW4549 – JW4510 (K983135 – K998908)
Tapered Roller Bearings - SR (Matched Bearing Assembly, SET-RIGHT™)
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
JW4549 – JW4510 (K983135 – K998908)
Specifications
Cone Part Number
JW4549
Cup Part Number
JW4510
Inner Spacer Part Number
K983135
Outer Spacer Part Number
K998908
Snap Ring Part Number
K928956
Design Unit
Metric
Dimensions
d - Bore
45 mm
D - Cup Outer Diameter
95 mm
T - Width
64 mm
C - Width
46 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
2.540 mm
r - Cup Backface "To Clear" Radius2
0.3 mm
db - Cone Backface Backing Diameter
64 mm
Da - Cup Frontface Backing Diameter
90.90 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (90 million revolutions)3
30700 N
C1 - Dynamic Radial Rating (1 million revolutions)4
206000 N
C5
45500 N
C906
53400 N
Factors
K - Factor7
0.67
e - ISO Factor8
0.87
Y1 - ISO Factor9
0.78
Y2 - ISO Factor10
1.16
