Timken LM757049 – LM757010 (LM757010ES)
Tapered Roller Bearings - 2TS-DM (Matched Bearing Assembly, Direct Mount)
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
LM757049 – LM757010 (LM757010ES)
Specifications
Cone Part Number
LM757049
Cup Part Number
LM757010
Related Assembly Number(s)
LM757049-902A4
Outer Spacer Part Number
LM757010ES
Design Unit
Inch

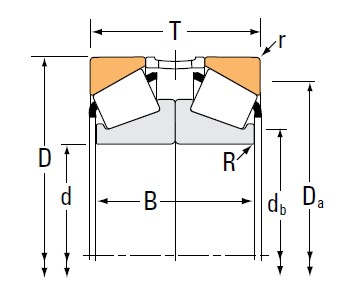

Dimensions
d - Bore
304.8 mm
D - Cup Outer Diameter
406.400 mm
T - Width
127 mm
B - Width
127 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
1.5 mm
r - Cup Backface "To Clear" Radius2
3.30 mm
db - Cone Backface Backing Diameter
331 mm
Da - Cup Frontface Backing Diameter
393.95 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (90 million revolutions)3
199000 N
C1 - Dynamic Radial Rating (1 million revolutions)4
1340000 N
C5
151000 N
C906
347000 N
Factors
K - Factor7
1.32
e - ISO Factor8
0.44
Y1 - ISO Factor9
1.53
Y2 - ISO Factor10
2.28
