Timken N-3517-A
Thrust Tapered Roller Bearings-Type TTHD
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Bearing Type
Thrust Tapered Roller Bearings - TTHD
Bearing Configuration
Thrust TTHD - with cage, but no roller smaller-end ribs

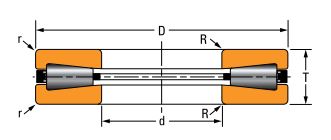

Dimensions
D - Bearing O.D.
495.300 mm
T - Bearing Width
127 mm
R - Fillet Radius Shaft (Max)
12.700 mm
r - Fillet Radius Housing (Max)
12.7 mm
Basic Load Ratings
Static Load Rating
19000000 N
Dynamic Load Rating
1590000 N
