Timken T921-902A1
Thrust Tapered Roller Bearings-Type TTHD
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Bearing Type
Thrust Tapered Roller Bearings - TTHD
Bearing Configuration
Thrust TTHD - with cage and I.D. corner reliefs

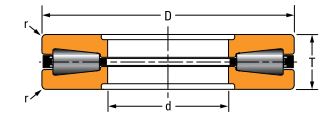

Dimensions
D - Bearing O.D.
546.1 mm
T - Bearing Width
127 mm
R - Fillet Radius Shaft (Max)
1.5 mm
r - Fillet Radius Housing (Max)
16 mm
Basic Load Ratings
Static Load Rating
21300000 N
Dynamic Load Rating
1570000 N
