Timken T921F-902A4

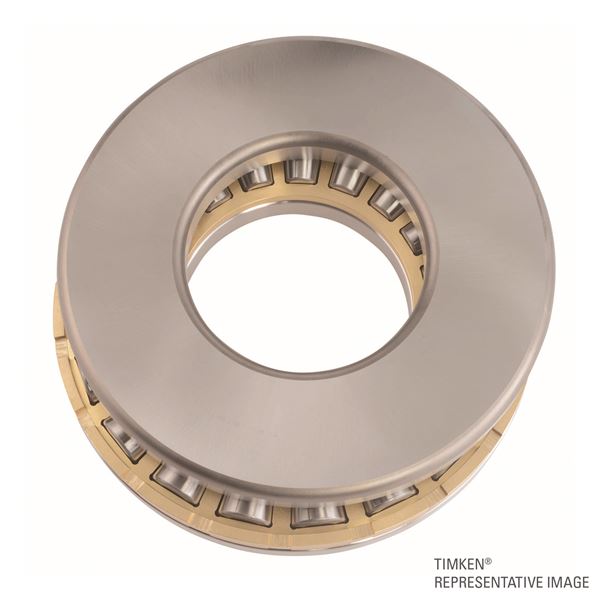

Thrust Tapered Roller Bearings-Type TTHD
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Bearing Type
Thrust Tapered Roller Bearings - TTHD
Bearing Configuration
Thrust TTHD - with full complement of rollers (cageless) and I.D. corner reliefs

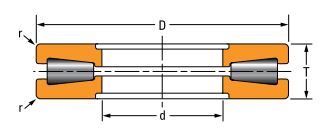

Dimensions
D - Bearing O.D.
546.1 mm
T - Bearing Width
127 mm
R - Fillet Radius Shaft (Max)
1.5 mm
r - Fillet Radius Housing (Max)
16 mm
Basic Load Ratings
Static Load Rating
30000000 N
Dynamic Load Rating
15550000 N
