Timken RA009RRB
Fafnir® Eccentric Locking Collar Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
Standard
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Non-Relubricatable
O.D. Type
Spherical OD
Sub Series
RA..RRB
Seal Type
Molded Shroud

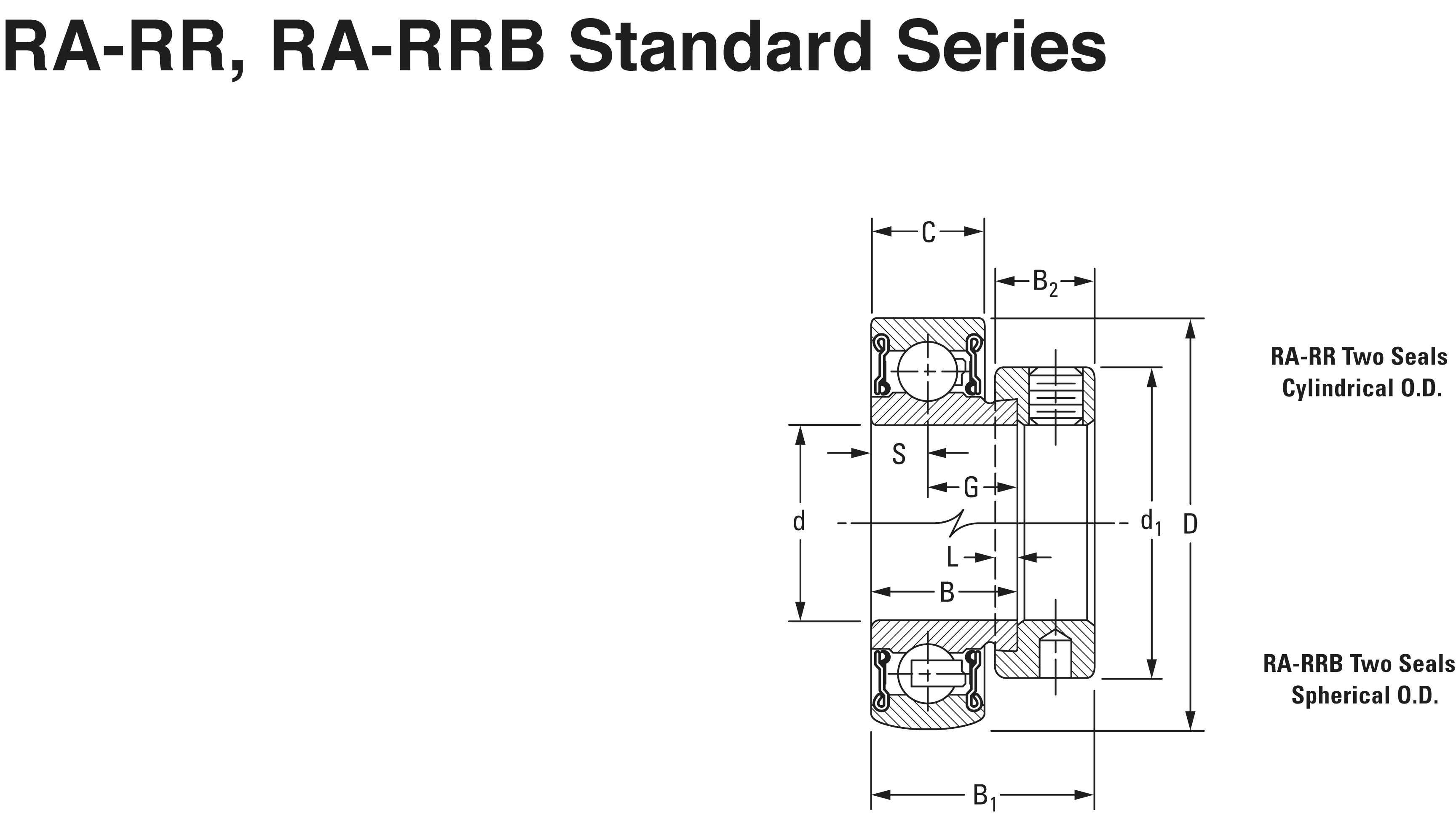

Dimensions
Outside Diameter D
40 mm
Inner Ring Width B
19.05 mm
Outside Ring Width C
12 mm
Radius r
0.6 mm
Center of Bearing from End S
6.5 mm
Set Screw Size
1/4-20
Number of Set Screws
2
Angle between Set Screws
90 º
Dimension d1
28.6 mm
Dimension B1
28.6 mm
Dimension B2
13.5 mm
Basic Load Ratings
Static Load Rating
4700 N
Dynamic Load Rating
10700 N
