Timken RA102DD
Fafnir® Eccentric Locking Collar Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Series
Standard
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Non-Relubricatable
O.D. Type
Cylindrical OD
Sub Series
RA..DD
Collar No.
S1102K
Basic Outer Ring Size
206

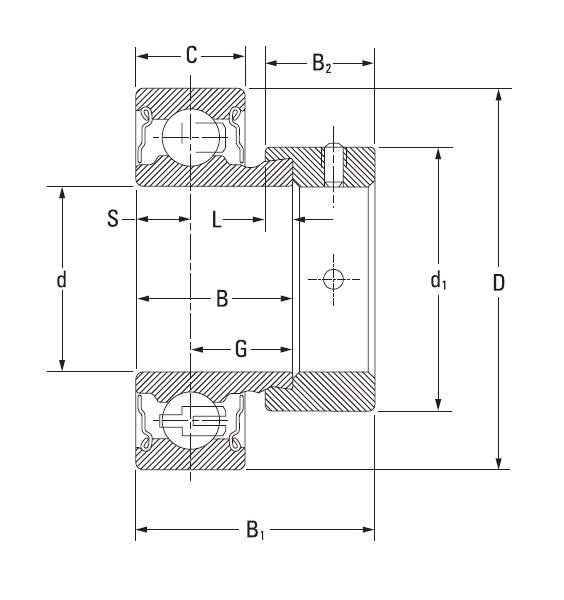

Dimensions
Outside Diameter D
62 mm
Inner Ring Width B
23.83 mm
Outside Ring Width C
18.01 mm
Radius r
0.6 mm
Center of Bearing from End S
8.99 mm
Number of Set Screws
2
Angle between Set Screws
90 º
Dimension d1
44.45 mm
Dimension B1
35.72 mm
Dimension B2
15.88 mm
Dimension G
14.81 mm
Dimension L
3.97 mm
Basic Load Ratings
Static Load Rating
10000 N
Dynamic Load Rating
21600 N
