Timken RA108DD
Fafnir® Eccentric Locking Collar Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Series
Standard
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Non-Relubricatable
O.D. Type
Cylindrical OD
Sub Series
RA..DD
Collar No.
S1108K
Basic Outer Ring Size
208

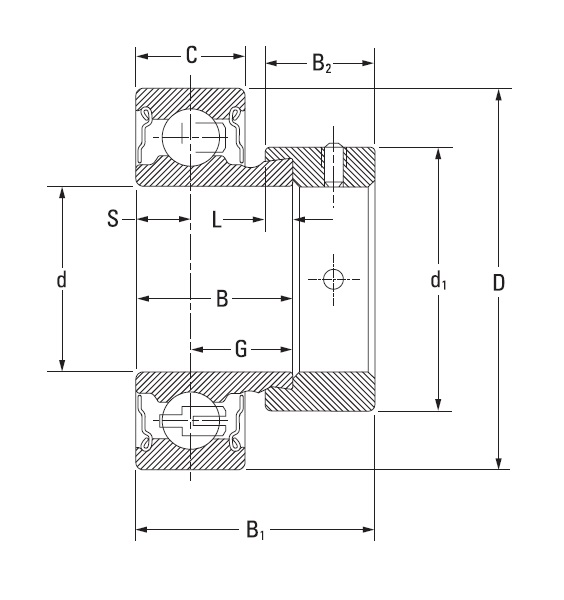

Dimensions
Outside Diameter D
80 mm
Inner Ring Width B
30.18 mm
Outside Ring Width C
22 mm
Radius r
0.6 mm
Center of Bearing from End S
11 mm
Number of Set Screws
2
Angle between Set Screws
90 º
Dimension d1
60.33 mm
Dimension B1
43.66 mm
Dimension B2
18.26 mm
Dimension G
19.18 mm
Dimension L
4.76 mm
Basic Load Ratings
Static Load Rating
17600 N
Dynamic Load Rating
36000 N
