Timken RA201RRB
Fafnir® Eccentric Locking Collar Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Series
Standard
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Non-Relubricatable
O.D. Type
Spherical OD
Sub Series
RA..RRB
Seal Type
Molded Shroud

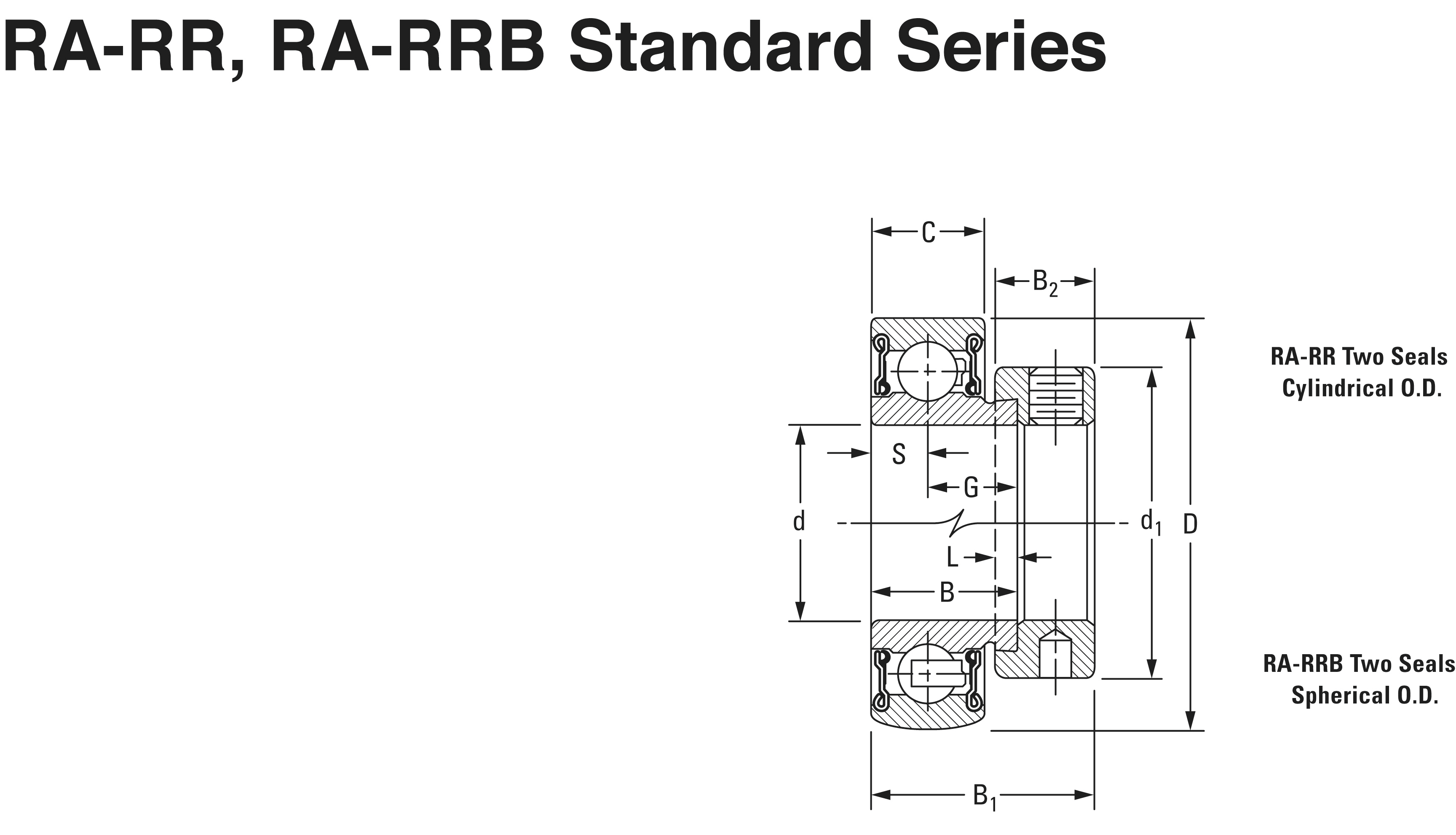

Dimensions
Outside Diameter D
100 mm
Inner Ring Width B
32.54 mm
Outside Ring Width C
24 mm
Radius r
0.6 mm
Center of Bearing from End S
11.99 mm
Set Screw Size
7/16-14
Number of Set Screws
2
Angle between Set Screws
90 º
Dimension d1
76.2 mm
Dimension B1
48.4 mm
Dimension B2
20.6 mm
Basic Load Ratings
Static Load Rating
29200 N
Dynamic Load Rating
48100 N
