Timken RAE20DD
Fafnir® Eccentric Locking Collar Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Series
Standard
Shaft Size d
20 mm
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Non-Relubricatable
O.D. Type
Cylindrical OD
Sub Series
RA..DD
Collar No.
SE20K
Basic Outer Ring Size
204

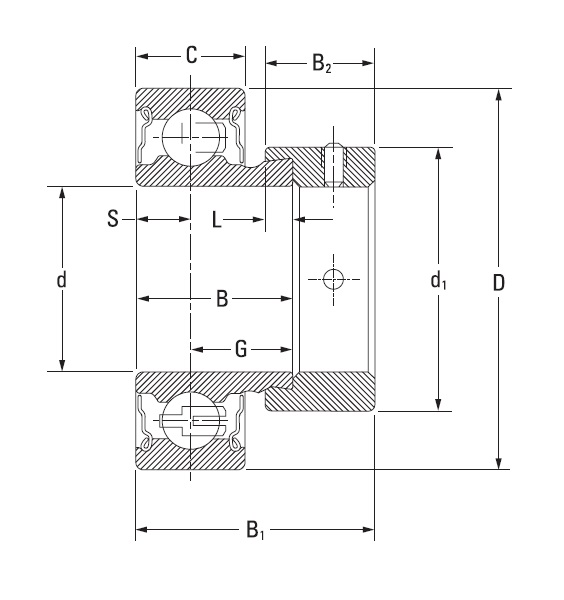

Dimensions
Outside Diameter D
47 mm
Inner Ring Width B
21.44 mm
Outside Ring Width C
15.01 mm
Radius r
0.6 mm
Center of Bearing from End S
7.49 mm
Number of Set Screws
2
Angle between Set Screws
90 º
Dimension d1
33.34 mm
Dimension B1
30.96 mm
Dimension B2
13.49 mm
Dimension G
13.92 mm
Dimension L
3.97 mm
Basic Load Ratings
Static Load Rating
6200 N
Dynamic Load Rating
14300 N
