Timken RAL012NPPB
Fafnir® Eccentric Locking Collar Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Series
Light-Duty
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Non-Relubricatable
O.D. Type
Spherical OD
Sub Series
RAL..NPPB
Collar No.
LS012K
Basic Outer Ring Size
9104

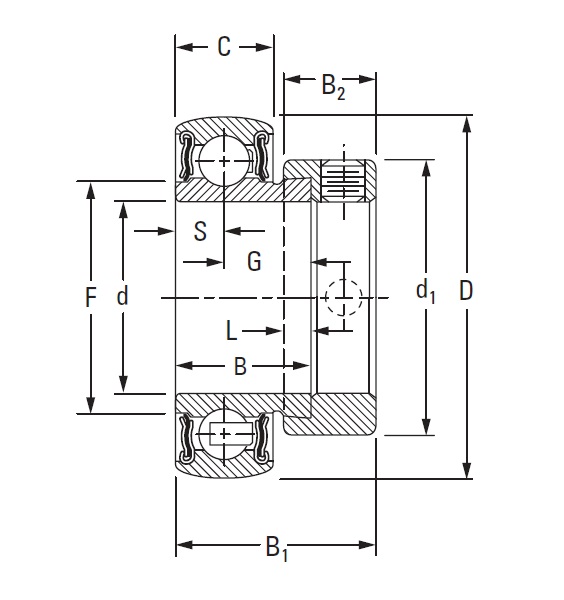

Dimensions
Outside Diameter D
42 mm
Inner Ring Width B
16.67 mm
Outside Ring Width C
12 mm
Radius r
0.6 mm
Center of Bearing from End S
6 mm
Number of Set Screws
2
Angle between Set Screws
90 º
Dimension d1
29.8 mm
Dimension B1
24.6 mm
Dimension B2
11.1 mm
Dimension F
25.15 mm
Dimension G
10.66 mm
Dimension L
3.2 mm
Basic Load Ratings
Static Load Rating
4400 N
Dynamic Load Rating
10400 N
