Timken RAL100NPPB
Fafnir® Eccentric Locking Collar Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Series
Light-Duty
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Non-Relubricatable
O.D. Type
Spherical OD
Sub Series
RAL..NPPB
Collar No.
LS100K
Basic Outer Ring Size
9105

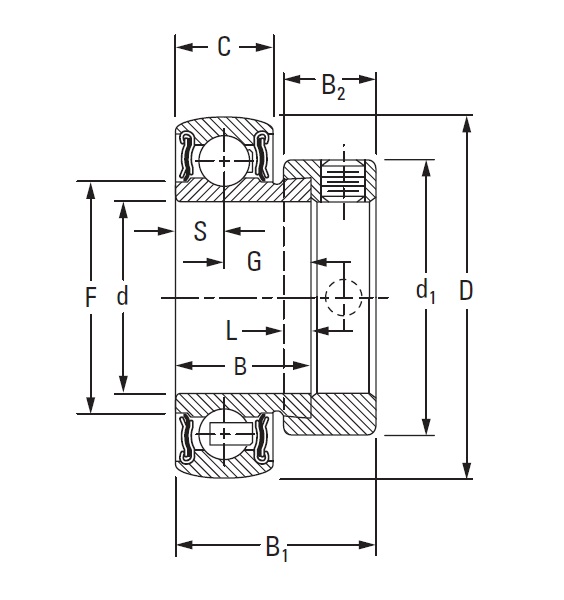

Dimensions
Outside Diameter D
47 mm
Inner Ring Width B
17.46 mm
Outside Ring Width C
12 mm
Radius r
0.6 mm
Center of Bearing from End S
6 mm
Number of Set Screws
2
Angle between Set Screws
90 º
Dimension d1
36.1 mm
Dimension B1
25.4 mm
Dimension B2
11.9 mm
Dimension F
29.67 mm
Dimension G
11.48 mm
Dimension L
4 mm
Basic Load Ratings
Static Load Rating
4900 N
Dynamic Load Rating
11000 N
