Timken RAL103NPP2
Fafnir® Eccentric Locking Collar Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Series
Light-Duty
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Non-Relubricatable
O.D. Type
Cylindrical OD
Sub Series
RAL..NPP2
Collar No.
LS103K2
Basic Outer Ring Size
9106

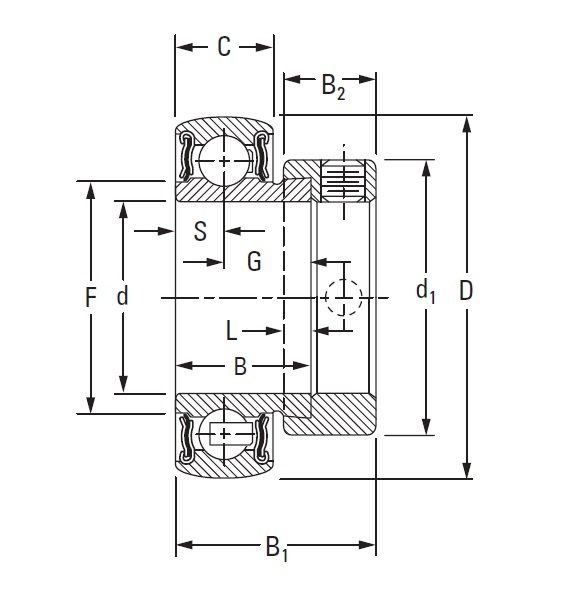

Dimensions
Outside Diameter D
55 mm
Inner Ring Width B
18.27 mm
Outside Ring Width C
13 mm
Radius r
0.6 mm
Center of Bearing from End S
6.5 mm
Number of Set Screws
2
Angle between Set Screws
90 º
Dimension d1
42.5 mm
Dimension B1
26.2 mm
Dimension B2
11.9 mm
Dimension F
36.32 mm
Dimension G
11.76 mm
Dimension L
4 mm
Basic Load Ratings
Static Load Rating
6950 N
Dynamic Load Rating
14600 N
