Timken RAL103PP
Fafnir® Eccentric Locking Collar Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Manufacturing Part Number
RAL103PP
Series
Light-Duty
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Non-Relubricatable
O.D. Type
Cylindrical OD
Sub Series
RAL..PP
Collar No.
RAL103PP
Basic Outer Ring Size
9106

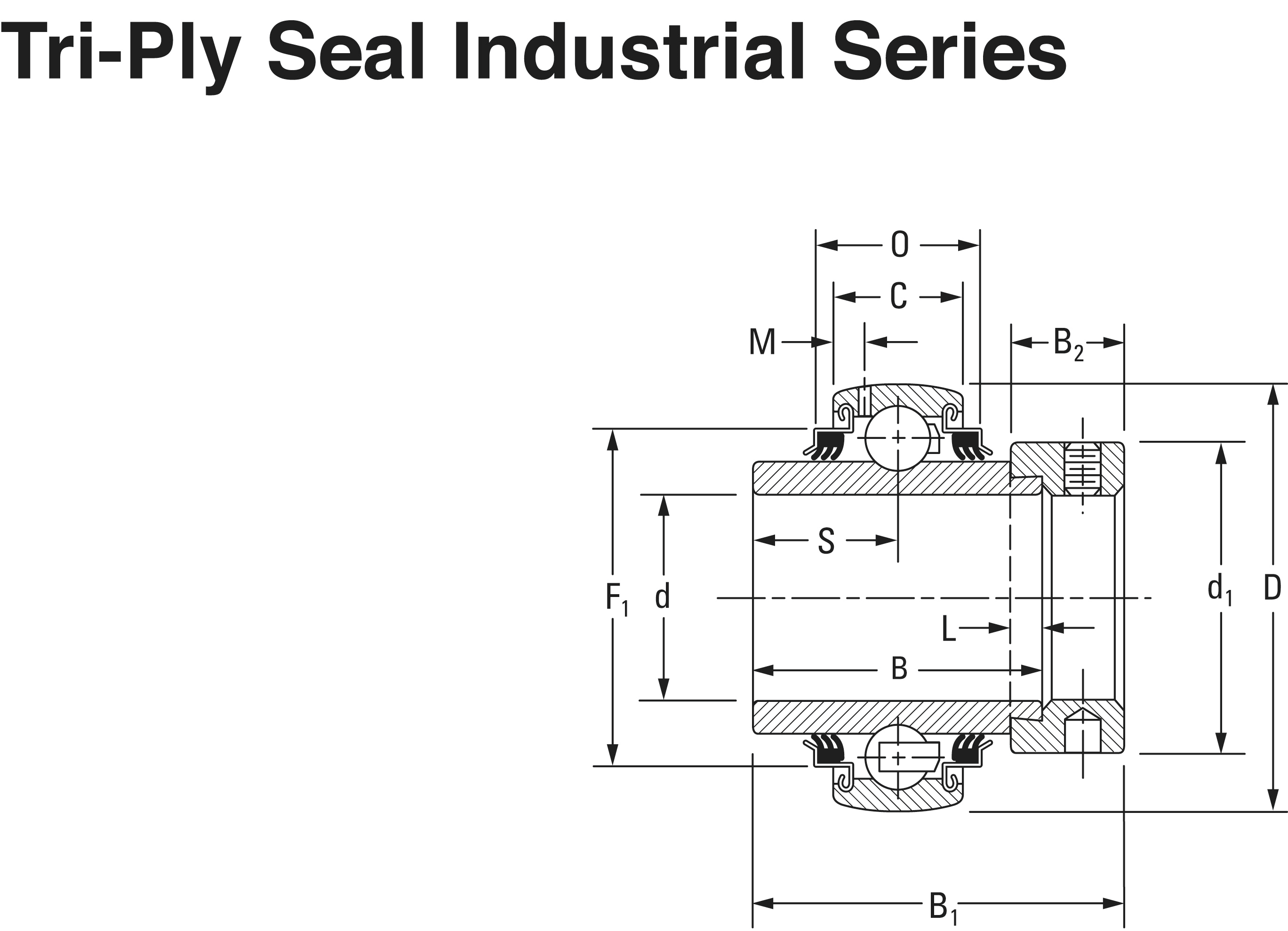

Dimensions
Outside Diameter D
55 mm
Inner Ring Width B
25.34 mm
Outside Ring Width C
18 mm
Radius r
0.99 mm
Center of Bearing from End S
9 mm
Set Screw Size
10-32
Number of Set Screws
2
Angle between Set Screws
90 º
Dimension d1
44.07 mm
Dimension B1
37.26 mm
Dimension B2
15.88 mm
Dimension F
38.57 mm
Basic Load Ratings
Static Load Rating
8318 N
Dynamic Load Rating
14679 N
