Timken SM1106K
Fafnir® Eccentric Locking Collar Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Series
Industrial
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Non-Relubricatable
O.D. Type
Cylindrical OD
Sub Series
SM..K
Collar No.
S1106K
Basic Outer Ring Size
207

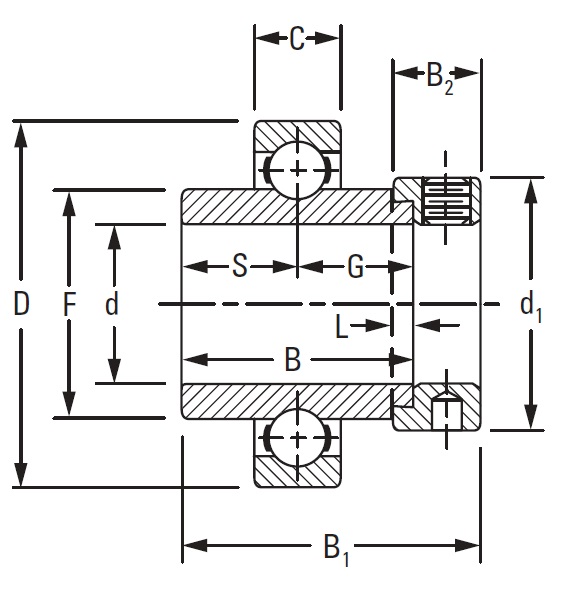

Dimensions
Outside Diameter D
72 mm
Inner Ring Width B
37.7 mm
Outside Ring Width C
17 mm
Radius r
0.6 mm
Center of Bearing from End S
18.85 mm
Number of Set Screws
2
Angle between Set Screws
90 º
Dimension d1
54 mm
Dimension B1
51.2 mm
Dimension B2
17.46 mm
Dimension F
46.13 mm
Dimension G
18.85 mm
Dimension L
4 mm
Basic Load Ratings
Static Load Rating
15100 N
Dynamic Load Rating
28500 N
