Timken SM1207K
Fafnir® Eccentric Locking Collar Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
Industrial
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Non-Relubricatable
O.D. Type
Cylindrical OD
Sub Series
SM..K
Collar No.
S1207K
Basic Outer Ring Size
212

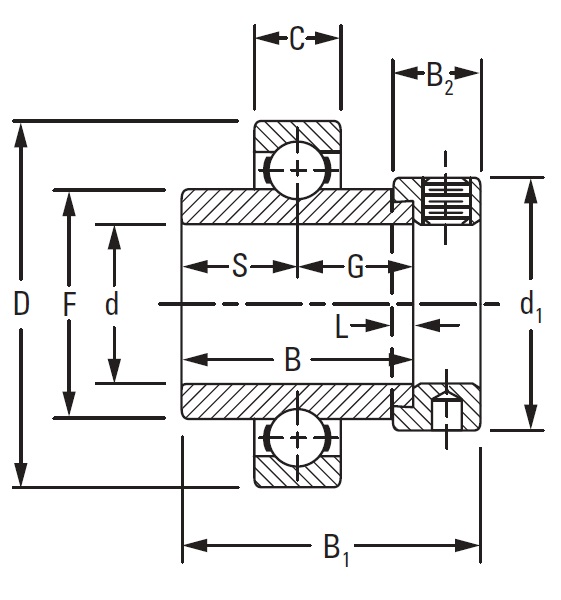

Dimensions
Outside Diameter D
110 mm
Inner Ring Width B
61.91 mm
Outside Ring Width C
22 mm
Radius r
0.6 mm
Center of Bearing from End S
30.96 mm
Number of Set Screws
2
Angle between Set Screws
90 º
Dimension d1
84.14 mm
Dimension B1
77.8 mm
Dimension B2
22.33 mm
Dimension F
76.48 mm
Dimension G
30.96 mm
Dimension L
6.4 mm
Basic Load Ratings
Static Load Rating
35600 N
Dynamic Load Rating
58500 N
