Timken SM1208KB
Fafnir® Eccentric Locking Collar Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
Industrial
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Non-Relubricatable
O.D. Type
Spherical OD
Sub Series
SM..KB
Collar No.
S1208K
Basic Outer Ring Size
213

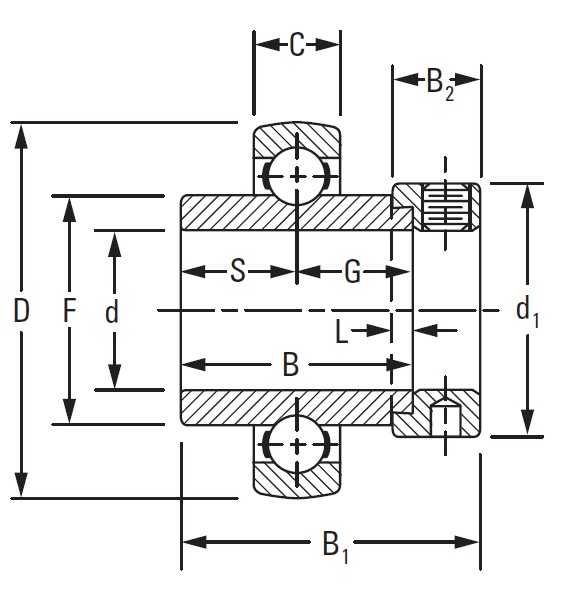

Dimensions
Outside Diameter D
120 mm
Inner Ring Width B
68.26 mm
Outside Ring Width C
23 mm
Radius r
0.6 mm
Center of Bearing from End S
34.13 mm
Number of Set Screws
2
Angle between Set Screws
90 º
Dimension d1
96.84 mm
Dimension B1
85.73 mm
Dimension B2
23.81 mm
Dimension F
84.58 mm
Dimension G
34.13 mm
Dimension L
6.4 mm
Basic Load Ratings
Static Load Rating
39200 N
Dynamic Load Rating
63000 N
