Timken SM1211KTS
Fafnir® Eccentric Locking Collar Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Manufacturing Part Number
SM1211KTS
Series
Industrial
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Non-Relubricatable
O.D. Type
Spherical OD
Sub Series
SM..KTS
Collar No.
S1211KT
Basic Outer Ring Size
214

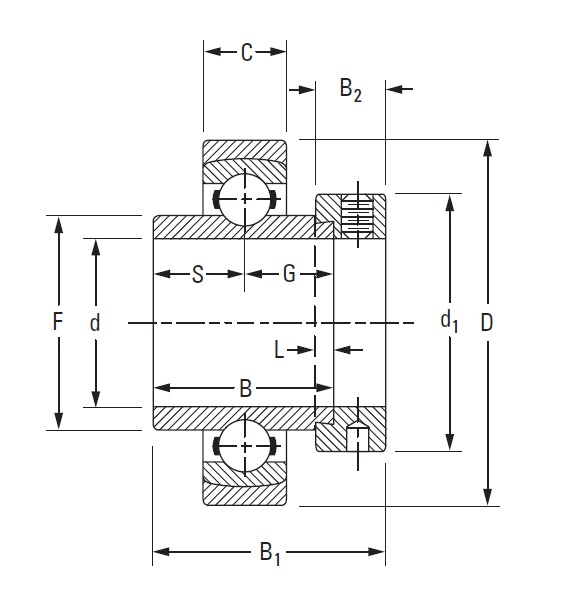

Dimensions
Outside Diameter D
125 mm
Inner Ring Width B
68.26 mm
Outside Ring Width C
24 mm
Radius r
1.5 mm
Center of Bearing from End S
34.09 mm
Set Screw Size
1/2-13
Number of Set Screws
2
Angle between Set Screws
90 º
Dimension d1
95.55 mm
Dimension B1
85.62 mm
Dimension B2
23.8 mm
Dimension F
86.91 mm
Basic Load Ratings
Static Load Rating
43992 N
Dynamic Load Rating
68947 N
