Timken SM1303KB
Fafnir® Eccentric Locking Collar Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
Industrial
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Non-Relubricatable
O.D. Type
Spherical OD
Sub Series
SM..KB
Collar No.
S1303K
Basic Outer Ring Size
216

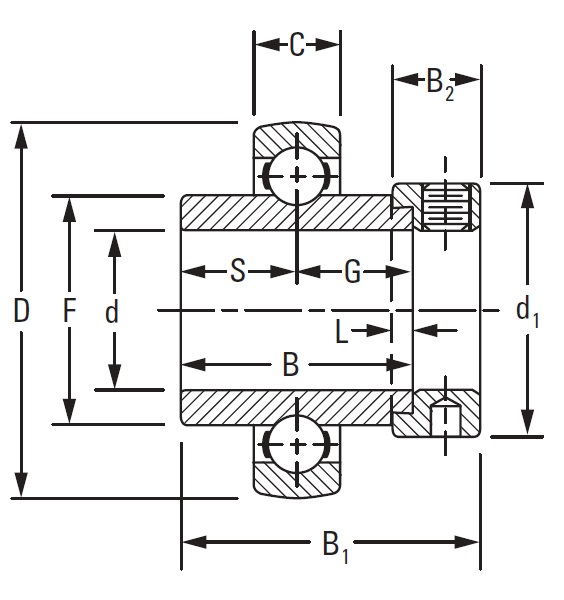

Dimensions
Outside Diameter D
140 mm
Inner Ring Width B
80.96 mm
Outside Ring Width C
26 mm
Radius r
0.6 mm
Center of Bearing from End S
40.48 mm
Number of Set Screws
2
Angle between Set Screws
90 º
Dimension d1
111.13 mm
Dimension B1
100.01 mm
Dimension B2
25.4 mm
Dimension F
98.4 mm
Dimension G
40.48 mm
Dimension L
6.4 mm
Basic Load Ratings
Static Load Rating
53400 N
Dynamic Load Rating
80000 N
