Timken SM1307KS
Fafnir® Eccentric Locking Collar Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
Industrial
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Non-Relubricatable
O.D. Type
Cylindrical OD
Sub Series
SM..KS
Collar No.
S1307K
Basic Outer Ring Size
217

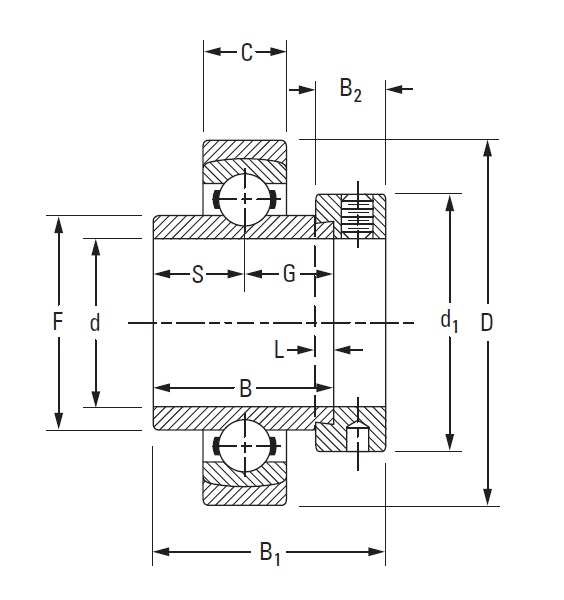

Dimensions
Outside Diameter D
165 mm
Inner Ring Width B
87.31 mm
Outside Ring Width C
28 mm
Radius r
0.6 mm
Center of Bearing from End S
43.66 mm
Number of Set Screws
2
Angle between Set Screws
90 º
Dimension d1
112.71 mm
Dimension B1
106.36 mm
Dimension B2
25.4 mm
Dimension F
104.83 mm
Dimension G
43.66 mm
Dimension L
6.4 mm
Basic Load Ratings
Static Load Rating
61000 N
Dynamic Load Rating
93000 N
