Timken SM1311W-BR
Fafnir® Eccentric Locking Collar Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
Industrial
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Non-Relubricatable
O.D. Type
Cylindrical OD
Sub Series
SM..W-BR
Collar No.
S1311K
Basic Outer Ring Size
219

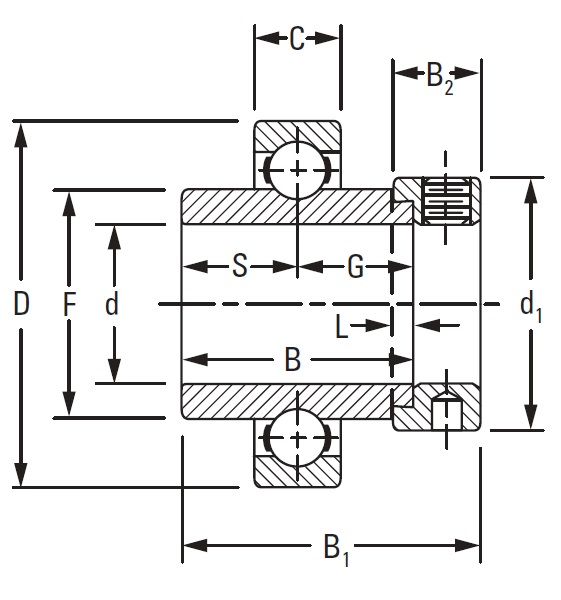

Dimensions
Outside Diameter D
170 mm
Inner Ring Width B
93.66 mm
Outside Ring Width C
32 mm
Radius r
0.6 mm
Center of Bearing from End S
46.83 mm
Number of Set Screws
2
Angle between Set Screws
90 º
Dimension d1
127 mm
Dimension B1
114.3 mm
Dimension B2
26.99 mm
Dimension F
118.34 mm
Dimension G
46.83 mm
Dimension L
6.4 mm
Basic Load Ratings
Static Load Rating
113600 N
Dynamic Load Rating
150000 N
