Timken SM1315WB-BR
Fafnir® Eccentric Locking Collar Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
Industrial
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Non-Relubricatable
O.D. Type
Spherical OD
Sub Series
SM..WB-BR
Collar No.
S1315
Basic Outer Ring Size
220

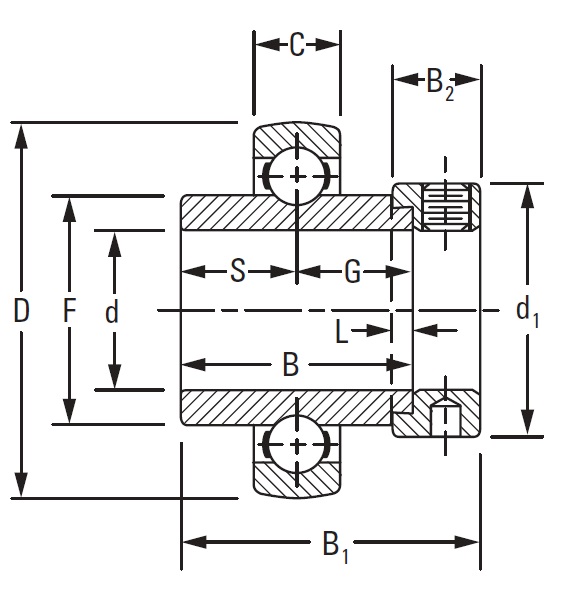

Dimensions
Outside Diameter D
180 mm
Inner Ring Width B
100.01 mm
Outside Ring Width C
34 mm
Radius r
0.6 mm
Center of Bearing from End S
50 mm
Number of Set Screws
2
Angle between Set Screws
90 º
Dimension d1
139.7 mm
Dimension B1
125.41 mm
Dimension B2
31.75 mm
Dimension F
123.85 mm
Dimension G
50 mm
Dimension L
6.4 mm
Basic Load Ratings
Static Load Rating
126900 N
Dynamic Load Rating
170000 N
