Timken SMN100KB
Fafnir® Eccentric Locking Collar Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Series
Heavy-Duty
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Non-Relubricatable
O.D. Type
Spherical OD
Sub Series
SMN..KB
Collar No.
SN100K
Basic Outer Ring Size
305

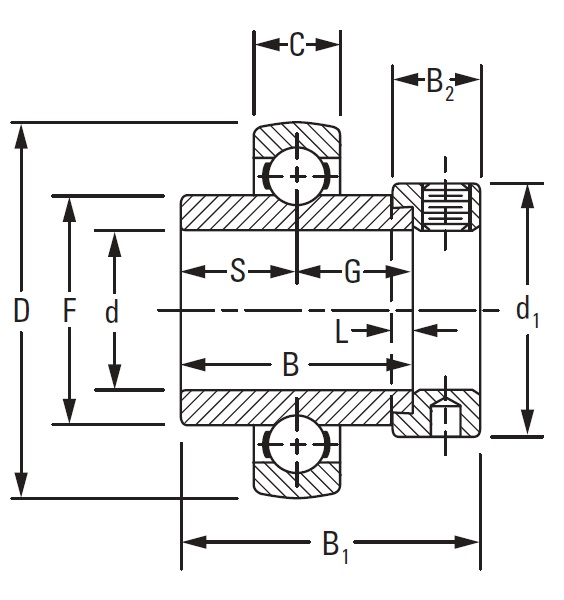

Dimensions
Outside Diameter D
62 mm
Inner Ring Width B
34.93 mm
Outside Ring Width C
17 mm
Radius r
0.6 mm
Center of Bearing from End S
16.67 mm
Number of Set Screws
2
Angle between Set Screws
90 º
Dimension d1
42.86 mm
Dimension B1
46.83 mm
Dimension B2
15.88 mm
Dimension F
36.5 mm
Dimension G
18.26 mm
Dimension L
4 mm
Basic Load Ratings
Static Load Rating
12200 N
Dynamic Load Rating
26000 N
