Timken SMN103KB
Fafnir® Eccentric Locking Collar Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Series
Heavy-Duty
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Non-Relubricatable
O.D. Type
Spherical OD
Sub Series
SMN..KB
Collar No.
SN103K
Basic Outer Ring Size
306

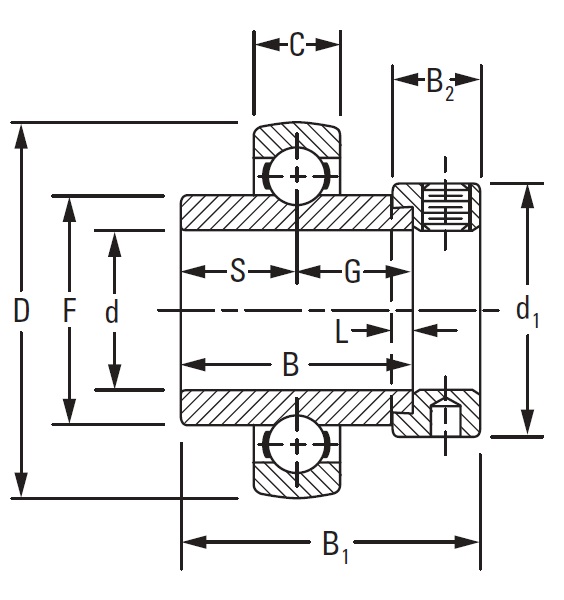

Dimensions
Outside Diameter D
72 mm
Inner Ring Width B
36.51 mm
Outside Ring Width C
19 mm
Radius r
0.6 mm
Center of Bearing from End S
17.46 mm
Number of Set Screws
2
Angle between Set Screws
90 º
Dimension d1
49.21 mm
Dimension B1
50 mm
Dimension B2
17.46 mm
Dimension F
43.23 mm
Dimension G
19.05 mm
Dimension L
4 mm
Basic Load Ratings
Static Load Rating
15600 N
Dynamic Load Rating
33500 N
