Timken SMN108K
Fafnir® Eccentric Locking Collar Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Series
Heavy-Duty
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Non-Relubricatable
O.D. Type
Cylindrical OD
Sub Series
SMN..K
Collar No.
SN108K
Basic Outer Ring Size
308

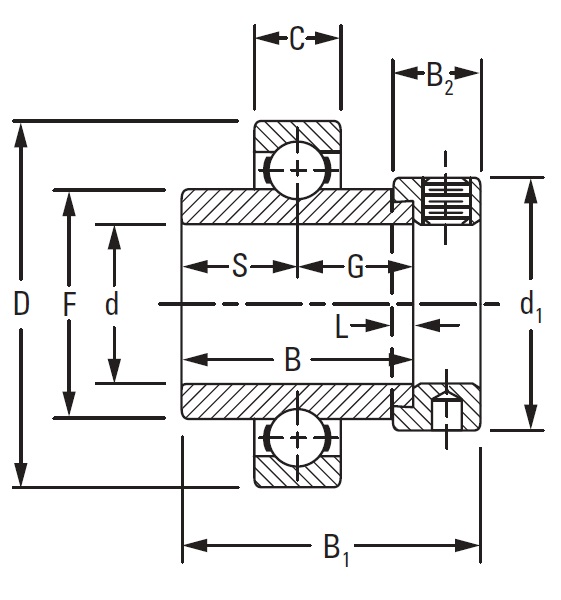

Dimensions
Outside Diameter D
90 mm
Inner Ring Width B
41.28 mm
Outside Ring Width C
23 mm
Radius r
0.6 mm
Center of Bearing from End S
19.84 mm
Number of Set Screws
2
Angle between Set Screws
90 º
Dimension d1
63.5 mm
Dimension B1
57.150 mm
Dimension B2
20.64 mm
Dimension F
55.5 mm
Dimension G
21.43 mm
Dimension L
4.8 mm
Basic Load Ratings
Static Load Rating
26100 N
Dynamic Load Rating
49000 N
