Timken SMN112KB
Fafnir® Eccentric Locking Collar Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Series
Heavy-Duty
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Non-Relubricatable
O.D. Type
Spherical OD
Sub Series
SMN..KB
Collar No.
SN112K
Basic Outer Ring Size
309

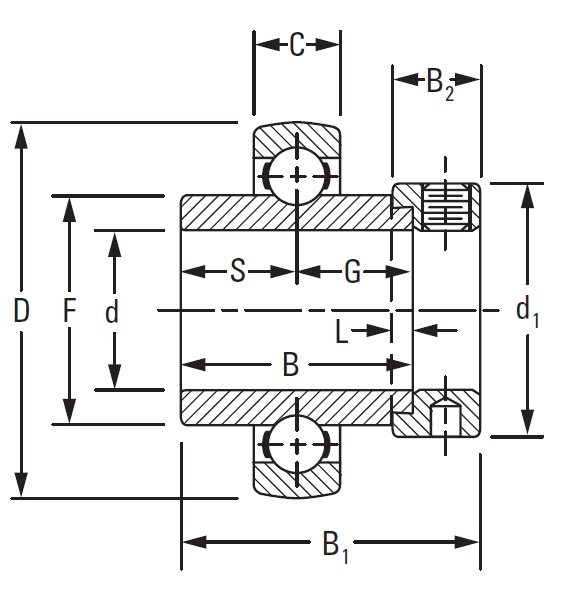

Dimensions
Outside Diameter D
100 mm
Inner Ring Width B
42.86 mm
Outside Ring Width C
25 mm
Radius r
0.6 mm
Center of Bearing from End S
19.84 mm
Number of Set Screws
2
Angle between Set Screws
90 º
Dimension d1
69.9 mm
Dimension B1
58.74 mm
Dimension B2
20.64 mm
Dimension F
62.05 mm
Dimension G
23.02 mm
Dimension L
4.8 mm
Basic Load Ratings
Static Load Rating
31600 N
Dynamic Load Rating
58500 N
