Timken SMN115K
Fafnir® Eccentric Locking Collar Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Series
Heavy-Duty
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Non-Relubricatable
O.D. Type
Cylindrical OD
Sub Series
SMN..K
Collar No.
SN115K
Basic Outer Ring Size
310

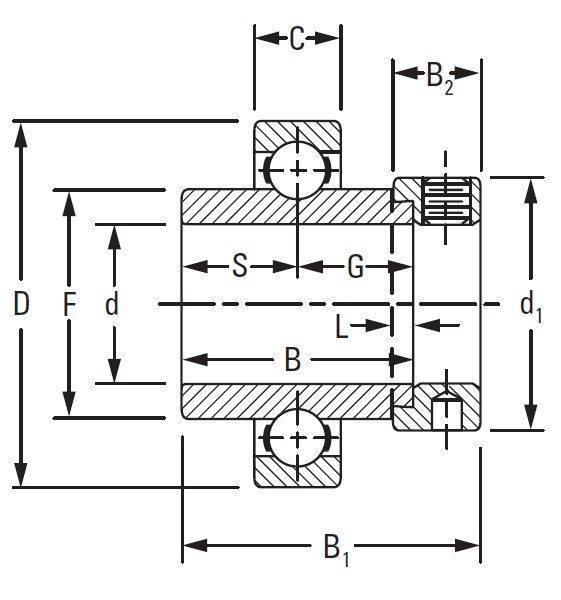

Dimensions
Outside Diameter D
110 mm
Inner Ring Width B
49.21 mm
Outside Ring Width C
27 mm
Radius r
0.6 mm
Center of Bearing from End S
24.61 mm
Number of Set Screws
2
Angle between Set Screws
90 º
Dimension d1
76.2 mm
Dimension B1
66.68 mm
Dimension B2
22.2 mm
Dimension F
68.78 mm
Dimension G
24.61 mm
Dimension L
4.8 mm
Basic Load Ratings
Static Load Rating
37900 N
Dynamic Load Rating
68000 N
