Timken SMN201K
Fafnir® Eccentric Locking Collar Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Series
Heavy-Duty
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Non-Relubricatable
O.D. Type
Cylindrical OD
Sub Series
SMN..K
Collar No.
SN201K
Basic Outer Ring Size
311

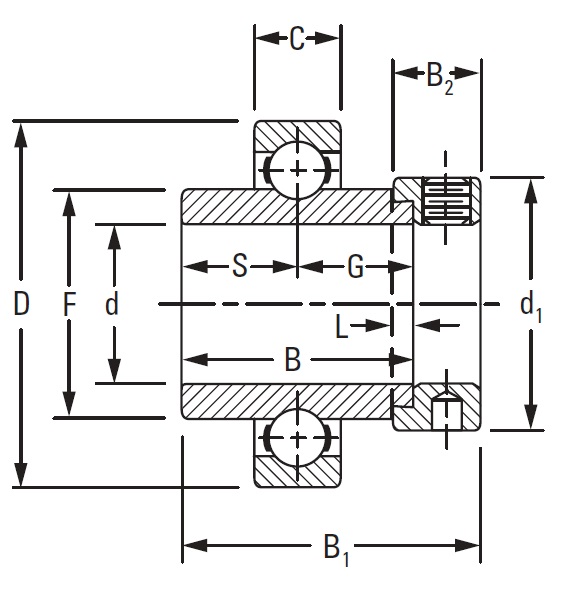

Dimensions
Outside Diameter D
120 mm
Inner Ring Width B
55.56 mm
Outside Ring Width C
29 mm
Radius r
0.6 mm
Center of Bearing from End S
27.78 mm
Number of Set Screws
2
Angle between Set Screws
90 º
Dimension d1
82.55 mm
Dimension B1
73.03 mm
Dimension B2
22.2 mm
Dimension F
75.01 mm
Dimension G
27.78 mm
Dimension L
4.8 mm
Basic Load Ratings
Static Load Rating
43600 N
Dynamic Load Rating
80000 N
